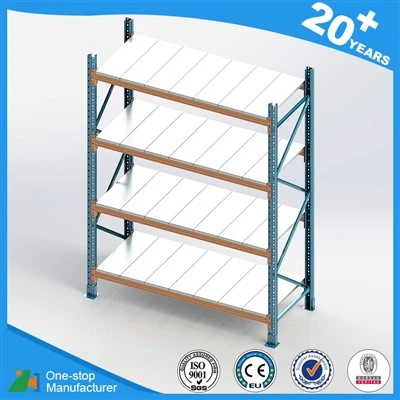

Boltless Shelving
Interlocking keyhole design requiring zero bolts or specialized tools. Designed for fast assembly, flexible tier adjustments, and light-to-medium manual package storage.
Direct Factory Manufacturer
Heavy-Duty Industrial Shelving Solutions Engineered for High Operational Efficiency
PrimeBay Heavy Duty Racking Co., Ltd. is a certified global manufacturer specializing in high-grade industrial shelving systems. Engineered specifically for manual picking, warehouse storage, auto-parts fulfillment, and retail operations, our modular boltless and longspan shelving systems combine high load capacity with rapid tool-free assembly.
All shelving components are cold-rolled from certified Q235B steel profiles, subjected to multi-stage surface treatments, and finished with electrostatically deposited epoxy powder coating. Designed to comply with international FEM and RMI standards, PrimeBay Heavy Duty Racking Co., Ltd. provides global procurement partners with structural longevity, customized dimensions, and complete factory-direct quality verification.
Product Range
Engineered Shelving Systems & Configurations
Select the optimal shelving structure based on shelf load requirements, bay width, and operational handling methods.

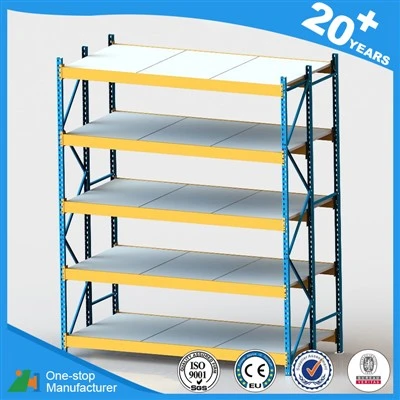

Boltless Shelving System
Multi-bay continuous shelf architecture optimized for high-density warehouse picking rows, workshop inventory, and commercial stockroom management.

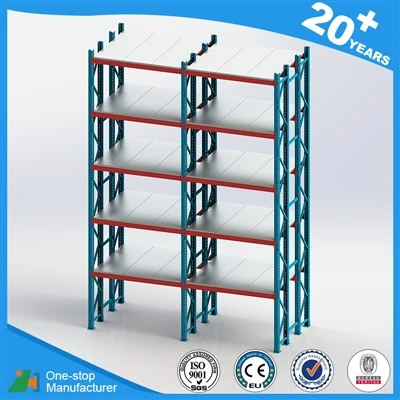

Longspan Shelving System
Engineered with heavy-duty step beams and upright frames supporting spans up to 2,500 mm. Ideal for bulky cartons, heavy parts, and manual order-picking operations.

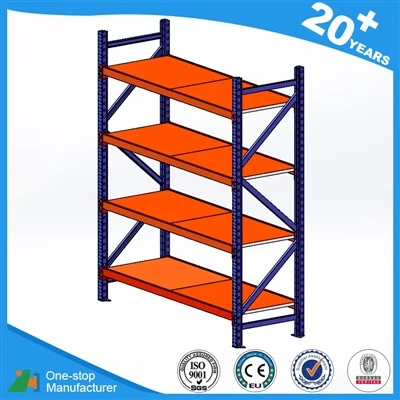

Medium Duty Shelving for Warehouse
Heavy steel decking options supporting 200 kg to 800 kg per layer. Built with reinforced safety pins and adjustable 50 mm beam pitch for maximum vertical flexibility.
Technical Specifications
Standard Industrial Shelving System Parameters
Comprehensive technical metrics designed for logistics engineers and international procurement managers.
| Shelving Category | Load Capacity (per tier) | Standard Height Range | Bay Width (Span) | Shelf Surface Decking | Surface Finish |
|---|---|---|---|---|---|
| Boltless Shelving | 150 kg – 300 kg | 1,500 mm – 2,400 mm | 900 mm – 1,200 mm | Steel Panel / MDF Wood Deck | Electrostatic Powder Coating |
| Medium Duty Shelving | 200 kg – 500 kg | 2,000 mm – 3,500 mm | 1,200 mm – 2,000 mm | Cold-Rolled Steel Decking | Epoxy Powder Coat (Custom RAL) |
| Longspan Shelving System | 300 kg – 800 kg | 2,000 mm – 5,000 mm | 1,500 mm – 2,500 mm | Wire Mesh / Galvanized Steel | Heavy Duty Epoxy Finish |
| Multi-Tier Shelving Structure | 200 kg – 600 kg | 3,000 mm – 8,000 mm | 1,200 mm – 2,200 mm | Perforated Steel / Solid Steel Deck | Powder Coated / Galvanized |
Manufacturing Excellence
Why Global Buyers Choose PrimeBay Heavy Duty Racking Co., Ltd.
Certified Structural Safety Rigid structural testing ensuring full compliance with CE, ISO 9001, and ISO 14001 quality standards.
Precision Automated Cold Roll-Forming In-house automated punching and roll-forming guarantee strict component tolerances and structural consistency.
Complete OEM & ODM Customization Tailored upright profiles, heavy load beams, branding packaging, and specific RAL color matching.
10-Year Product Structural Warranty Long-term operational peace of mind supported by rigorous factory load verification and design support.
Frequently Asked Questions
Industrial Shelving Procurement FAQs
What steel grade is used in PrimeBay shelving systems?
PrimeBay Heavy Duty Racking Co., Ltd. exclusively uses certified high-tensile Q235B and Q355B cold-rolled steel from top steel suppliers, ensuring optimal structural rigidity and long service life.
Can shelf levels be adjusted after installation?
Yes. Our boltless and medium-duty shelving systems feature continuous slot pitches (typically 50 mm or 75 mm), allowing manual beam adjustment without disassembling the entire rack structure.
How does PrimeBay protect shelving against corrosion?
Components undergo an automated 7-stage chemical cleaning, phosphating, and electrostatic powder coating process, providing high scratch resistance and durable protection in humid or industrial environments.
What container loading support is provided for international orders?
We provide engineered container loading plans, shrink-wrap protection, steel strapping, and custom wooden palletizing to ensure maximum space utilization and zero damage during ocean transit.
Require Custom Layouts or Factory-Direct Pricing?
Send your warehouse floor plan and load specifications directly to our engineering team at [email protected] for a free CAD design and technical quote within 24 hours.
