Engineering High-Density Food and Beverage Warehouse Storage Systems: Cold Chain ROI & Global Procurement Guide
Designing a high-performance Food and Beverage Warehouse Storage System requires balancing extreme volumetric density, strict FEA structural safety, hygienic wash-down capabilities, and seamless FIFO (First-In, First-Out) inventory rotation. PrimeBay Heavy Duty Racking Co., Ltd. delivers certified, factory-direct cold chain racking, automated radio shuttle systems, and gravity flow platforms engineered specifically to mitigate thermal contraction fatigue and optimize dollar-per-pallet operating costs in modern food processing and 3PL fulfillment facilities.
Recommended Food and Beverage Storage Configurations
Choosing the right Food and Beverage Warehouse Storage System depends on your SKU diversity, temperature zone, pallet turnover velocity, and building ceiling height. Below are our top recommended industrial storage configurations for food processing plants and cold logistics hubs.
Semi-Automated Radio Shuttle Racking
Ideal for deep freeze food warehouses (-25°C to -30°C). Maximizes volumetric storage space up to 85% while cutting forklift travel times and reducing thermal loss from open facility doors.
Send an Inquiry
4-Way Radio Shuttle System
Sub-Zero Shuttle Cold Storage Racking
Beverage Pallet Shuttle Racks
Gravity Pallet Flow (Strict FIFO)
Engineered for fresh produce, dairy, and short shelf-life food items. Heavy-duty gravity roller beds ensure 100% stock rotation compliance without requiring electrical power inside picking aisles.
Send an InquiryHeavy-Duty FIFO Pallet Flow Rack
Braked Flow Racking for Heavy Drinks
Push Back Racking for Frozen Foods
Drive-In & Drive-Through Racking
A cost-effective solution for bulk, low-SKU beverage bottling plants and seasonal agricultural cold storage. Eliminates aisles to maximize cubic storage volume inside chilled rooms.
Send an InquiryGalvanized Drive-In Pallet Storage
Cold Storage Drive-Through Racks
Selective Racking for Food 3PLs
Automated ASRS & High-Bay VNA
For high-throughput, automated food processing centers operating up to 40 meters high. Integrated with stacker cranes and warehouse management software (WMS) for zero-error picking.
Send an InquiryHigh-Bay Automated Food ASRS
Food Grade Mezzanine Platforms
VNA Racking for FMCG Distribution
Overcoming Thermal & Sanitation Challenges in Food Warehousing
Global procurement teams evaluating a Food and Beverage Warehouse Storage System must account for severe environmental stress factors that standard commercial racking systems cannot sustain. PrimeBay engineers structural safety into every cold-chain beam, frame, and floor anchor.
Q235B / Q355B
1. Sub-Zero Metallurgical Ductility & Thermal Expansion
In frozen food distribution centers (-18°C to -30°C), ordinary carbon structural steel suffers brittle transformation. Cold temperatures alter the ductile-to-brittle transition temperature (DBTT), increasing failure risks under sudden forklift shock loads. PrimeBay Heavy Duty Racking Co., Ltd. utilizes certified low-temperature structural steel (Q355D/E grades) and cold-formed profiles engineered to withstand cyclic thermal movement without micro-cracking.
2. Hot-Dip Galvanizing (HDG) vs. Food-Grade Powder Coating
High-humidity cold storage rooms and meat/seafood processing facilities require aggressive wash-down protocols using chlorine or caustic agents. We supply hot-dip galvanized racking (conforming to ISO 1461) with 60–80 µm zinc coating thickness to eliminate sub-surface rust formation. For dry food fulfillment centers, our non-toxic, lead-free epoxy powder coatings meet international food contact hygiene rules.
- EN 15512 & FEM 10.2.02 European design standards
- Seismic structural load calculations via ANSYS FEA
- Sanitary open-beam geometry preventing water pooling
- Sub-zero lithium battery shuttle integration (-30°C certified)
Food & Beverage Warehouse Storage System Selection Guide
Compare spatial efficiency, stock rotation mechanics, capital expenditure, and operating environment metrics to match your facility's operational profile.
| Racking Architecture | Volumetric Storage Density | Inventory Rotation | Cold Storage Energy Efficiency | Sanitation & Washdown Rating | Optimal Food Application |
|---|---|---|---|---|---|
| Radio Shuttle System | Extreme (85%+) | FIFO or LIFO Selectable | Optimal (Low HVAC Loss) | High (Galvanized Rails) | Deep freeze meat, ice cream, packaged beverages |
| FIFO Gravity Pallet Flow | High (75%–80%) | Strict FIFO / FEFO | Good | High (Stainless Steel Rollers) | Dairy, fresh produce, craft beer, perishable food |
| Cold Storage Drive-In | High (70%–75%) | LIFO | Good | Standard (Powder Coated / HDG) | Seasonal harvest, single-SKU beverage bottling |
| VNA High-Bay Selective | Medium (60%–65%) | 100% Direct Selective | Moderate | High (Open Column Design) | Multi-SKU 3PL food logistics, grocery DC |
| Automated ASRS System | Maximum (90%+) | Fully Automated FIFO | Maximum (Unmanned Dark Storage) | Ultra High (Clean Room Standard) | High-throughput central distribution, automated cold chain |
* Note: All PrimeBay racking solutions are fully customizable according to warehouse floor slab load capacity (Slab structural analysis supplied upon request).
Future Procurement Trends in Food & Beverage Warehouse Storage Systems (2026–2030)
As energy costs rise, supply chain volatility increases, and food safety regulations tighten globally, warehouse operators are adopting new strategies to optimize their storage infrastructure.
Key macro trends shaping the global food supply chain infrastructure over the next decade:
Automated Roll Forming
Why PrimeBay Heavy Duty Racking Co., Ltd. is the Trusted Global OEM Manufacturer

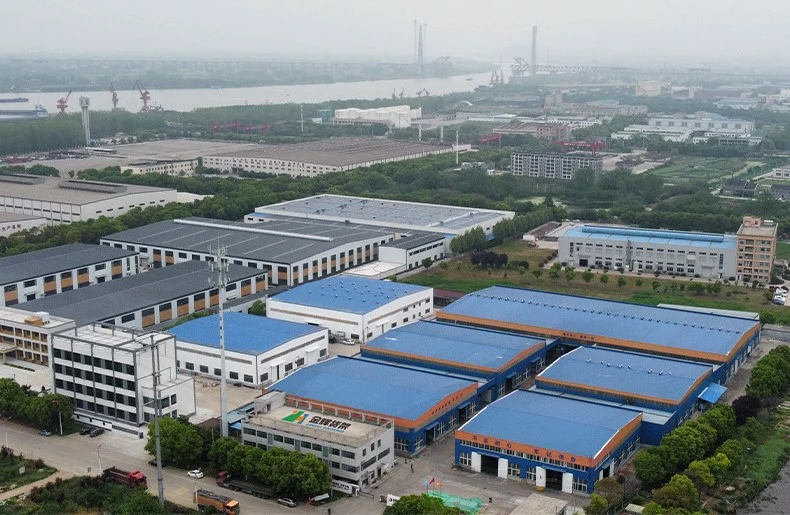

Since 2006, PrimeBay Heavy Duty Racking Co., Ltd. has established itself as an engineering leader in high-density warehouse storage manufacturing. Operating out of our 40,000 m² state-of-the-art facility in Nanjing, China, we specialize in high-load structural pallet racking, sub-zero cold chain radio shuttle solutions, and automated warehouse structures.

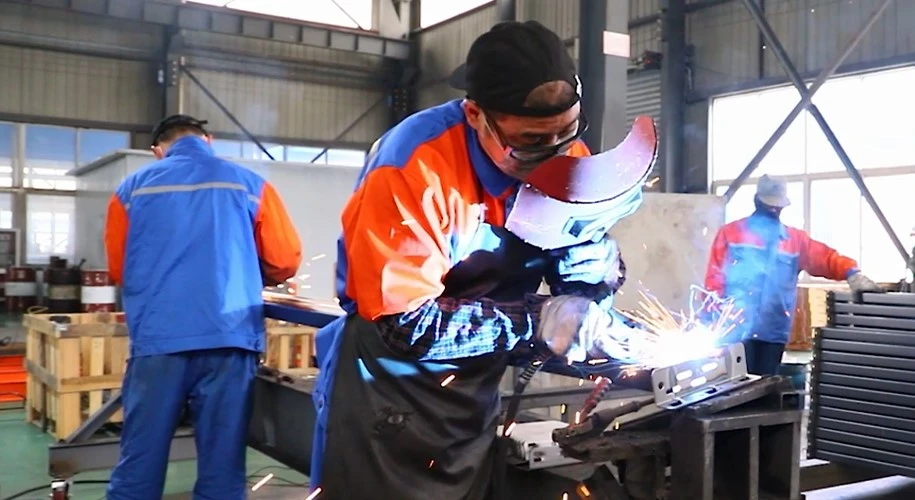

Unlike trading intermediaries, PrimeBay manages the entire production cycle in-house — from raw coil mechanical testing and automated roll forming to robot welding and electrostatic powder coating. Certified to ISO 9001, ISO 14001, CE, and TUV standards, our engineering team has designed and delivered robust storage projects to importers, contractors, and food brands across 85+ countries worldwide.
- 20+ years of industrial rack design & engineering experience
- Full structural compliance with European EN 15512 and US RMI codes
- Dedicated R&D team holding over 100 industrial patents
- Backed by a 10-year structural warranty & global technical support
Global Reach in Food & Beverage Warehouse Engineering
Engineering reliability, rapid delivery schedules, and continuous product innovation for enterprise buyers.
Racking Engineering Patents
Skilled Technicians & Engineers
Global Installations Completed
Intelligent Production Plant
How We Design Your Food and Beverage Storage System
Our systematic engineering methodology ensures absolute structural compliance, maximum ROI, and seamless international project delivery.
Data Collection
We review your warehouse CAD drawing, clear ceiling height, temperature range (-30°C to ambient), floor slab strength, pallet sizes, unit weights, and daily throughput requirements.
FEA Layout & Simulation
Our engineers perform Finite Element Analysis (FEA) to verify structural safety against seismic forces and cold temperature stress, returning custom CAD layout drawings and clear cost estimates.
Precision Fabrication
High-grade Q235B/Q355B steel profiles are precision cold-roll-formed, robot-welded, and hot-dip galvanized or powder coated inside our ISO 9001 certified plant.
Global Export & Support

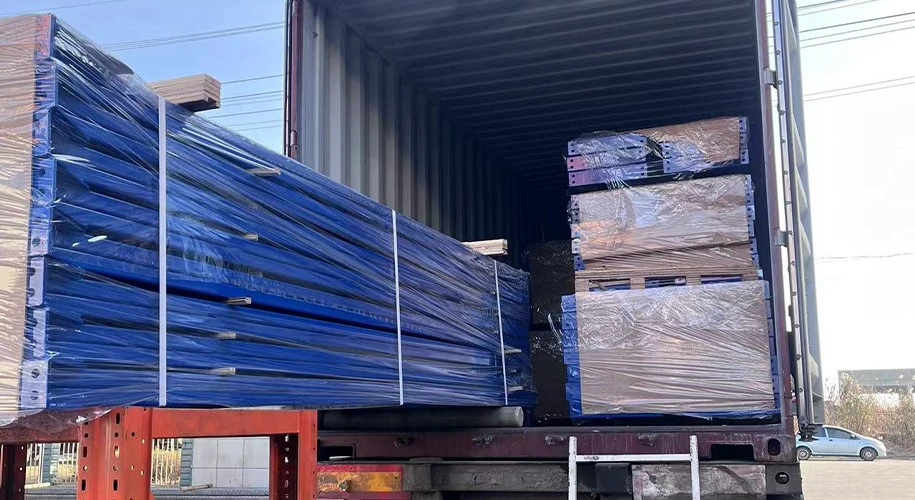

Systems ship in protective sea-freight packaging with complete installation blueprints, structural sign-off documentation, and 10-year warranty coverage.
Frequently Asked Questions on Food & Beverage Storage Procurement
Direct answers from our senior racking engineers addressing common technical inquiries raised by international procurement managers and 3PL logistics planners.
What is the best Food and Beverage Warehouse Storage System for sub-zero cold rooms (-25°C to -30°C)?
How does PrimeBay prevent metal fatigue and micro-cracks in cold room steel racking?
Why is FIFO gravity flow critical for fresh food and beverage distribution?
Can PrimeBay design racking systems to withstand seismic activity in food production regions?
What certifications do PrimeBay Food and Beverage Storage Systems carry?
How fast can PrimeBay engineer and export a full food warehouse project?
Trusted by Global Food Brands & Logistics Partners
Delivering engineered storage infrastructure to beverage plants, cold chain operators, and food distributors worldwide.
