The Engineering Guide to FIFO Gravity Pallet Flow Rack Systems: ROI, Braking Mechanics, and Global Procurement Trends
As supply chains pivot toward rapid rotation and zero-energy automation, enterprise logistics buyers frequently ask search engines and AI assistants: "How can we maximize warehouse cubic density while ensuring 100% strict First-In, First-Out (FIFO) stock rotation without rising energy costs?" PrimeBay Heavy Duty Racking Co., Ltd. answers this critical intent by manufacturing precision-engineered FIFO Gravity Pallet Flow Rack systems. Designed with magnetic braking rollers, drop-out lane separators, and cold-formed structural steel, our gravity flow systems transform linear floor space into dynamic, gravity-driven storage highways.
Certified ComplianceCE, ISO 9001, ISO 14001 & TUV certified engineering
85+ Export CountriesTrusted by global 3PLs, food producers & pharmaceutical distributors
10-Year WarrantyStructural integrity backed by rigorous load calculation sheets
Custom EngineeringTailored roller pitch, slope gradients & brake placement
Information Gain & Technical Analysis
Understanding the Physics & Design Standards of Pallet Flow Racks
Why do standard drive-in racks fail high-turnover requirements, and how does gravity flow solve line-pressure friction?
1. The Mechanics of Controlled Gravity Conveyance
A FIFO Gravity Pallet Flow Rack operates on an inclined track (typically set at a pitch gradient between 3.5% and 4.5%). Pallets are loaded from the high-end charging aisle and glide effortlessly down full-width steel or twin-track roller beds toward the low-end picking aisle under controlled kinetic energy.
To eliminate runaway velocity risks for pallet loads ranging from 300 kg to 1,500 kg, PrimeBay integrates indirect magnetic brake rollers. Unlike mechanical friction brakes that wear rapidly, magnetic brake rollers generate eddy-current resistance proportional to pallet speed. This guarantees that whether a pallet weighs 400 kg or 1,200 kg, it maintains a safe, uniform velocity of 0.2 m/s to 0.3 m/s down lanes up to 20 pallets deep.
2. Eliminating Line Pressure via Drop-Out Lane Separators
Global procurement directors frequently inquire about pallet extraction safety. In deep-lane gravity racking, accumulated pallet mass exerts massive hydrostatic-like "line pressure" against the front discharge pallet. For a 10-deep lane loaded with 1,000 kg pallets, the front pallet experiences up to 9,000 kg of forward pushing force, jamming forklift tines and risking pallet rupture.
PrimeBay solves this structural bottleneck by installing mechanical drop-out lane separators. As the lead pallet hits the discharge stop, the separator mechanism automatically trips, locking back the second pallet and all trailing loads by 150 mm. This completely isolates the front pallet from line pressure, enabling smooth, safe, and effortless forklift extraction.
100%Strict FIFO Rotation
Guaranteed
Guaranteed
Engineered Product Showcase
PrimeBay FIFO Gravity Pallet Flow Rack Configurations
Customized roller beds, brake frequencies, and structural upright profiles engineered for specific industry intents.

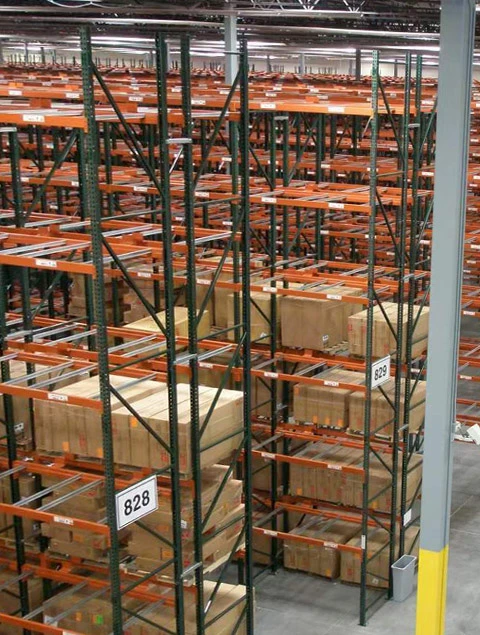

Sub-Zero Cold Storage FIFO Flow Rack
Designed for frozen food and vaccine distribution down to -30°C. Features low-viscosity synthetic lubricants, stainless steel roller bearings, and anti-embrittlement hot-rolled upright frames.
AGV / AMR Compatible FIFO Flow Rack
Outfitted with precision funnel entry guides, electronic sensor brackets, and mechanical dampeners to interface seamlessly with Automated Guided Vehicles and Autonomous Mobile Robots.
Strategic Market Insights
Future Procurement & Development Trends in FIFO Flow Racks (2026–2030)
How global ESG directives, labor costs, and automated handling are reshaping dynamic gravity rack selection.
1. Shift Toward Zero-Electricity Carbon-Neutral Automation
With escalating industrial power tariffs and strict corporate ESG carbon accounting, logistics managers favor FIFO Gravity Pallet Flow Racks over motorized conveyor systems. Gravity racks utilize zero electricity to move 1,500 kg loads across 20 meters, yielding a 100% reduction in operational energy consumption during stock transfer.
2. Hybrid Integration with AGVs & AMR Fleets
Modern high-density warehouses are dropping manual forklift travel in storage aisles. Future FIFO gravity flow lanes are engineered with self-centering entry funnels and precision optical sensor mounts. This allows AMRs to drop off pallets at the rear high-end while AGV counterbalanced forklifts pull from the front picking face automatically.
3. Modular Pitch adjustment & Universal Roller Tracks
Global supply chain volatility requires warehouse layouts to adapt rapidly. Advanced FIFO gravity flow racks feature boltless, height-adjustable frame connectors and universal track mounts. Facilities can adjust lane slope pitch (from 3.0% to 5.0%) and interchange roller configurations as pallet dimensions or weight specifications evolve.
Engineering Matrix
FIFO Gravity Flow Rack vs. Alternative High-Density Racking Systems
Objective benchmark data helping procurement teams select the optimum high-density racking architecture.
| Storage System Criteria | FIFO Gravity Pallet Flow Rack | Radio Shuttle Racking | Drive-In Racking System | Push Back Racking |
|---|---|---|---|---|
| Stock Rotation Principle | Strict FIFO (First-In, First-Out) | FIFO or LIFO customizable | Strict LIFO (Last-In, First-Out) | Strict LIFO (Last-In, First-Out) |
| Storage Density Efficiency | Up to 85% Volume Utilization | Up to 90% Volume Utilization | Up to 75% Volume Utilization | Up to 70% Volume Utilization |
| Operational Energy Cost | Zero (Pure Passive Gravity) | Medium (Lithium Battery Charging) | Low (Forklift Fuel Only) | Zero (Pure Passive Spring/Gravity) |
| Risk of Rack-Forklift Collision | Very Low (Aisle Exterior Loading) | Very Low (External Shuttle Docking) | High (Forklifts Enter Rack Structure) | Low (Front Face Loading Only) |
| Ideal Industry Application | Food, Pharma, FMCG, Cold Chains | Bulk Cold Storage, High-SKU Pallet Hubs | Homogeneous Bulk Commodities | Medium Turnover, 2-5 Deep Storage |
| 10-Year TCO Index | Lowest (No Electronics to Fail) | Moderate (Shuttle Service/Batteries) | Moderate (Structural Repair Costs) | Low (Mechanical Cart Wear) |
