Single Sided Cantilever Rack
Optimized for placement against warehouse walls, maximizing usable floor space while providing fast direct access to long profiles.
Wall-Mounted Storage Factory Direct Manufacturer
Engineered Cantilever Storage Solutions for Long Materials
PrimeBay Heavy Duty Racking Co., Ltd. is a recognized manufacturer and supplier of heavy-duty industrial cantilever rack systems. Specially designed for long, bulky, and non-standard goods, our cantilever storage racks eliminate front structural columns to enable unobstructed forklift loading and high-density vertical organization.
Whether storing steel pipes, lumber, aluminum extrusions, PVC tubes, or heavy structural beams, PrimeBay designs custom single-sided and double-sided cantilever systems engineered according to certified EN, RMI, and ISO standards for global logistics and manufacturing operations.
Direct Factory 100% In-House Rolling & Coating
Custom Capacity Up to 5,000 kg Load / Arm
Certified System ISO 9001, CE & TUV Certified
Global Export Shipped to 85+ Countries
Featured Products
Cantilever Racking Systems Catalog
Explore our heavy-duty cantilever storage series customized for industrial plants, lumber yards, and distribution centers.

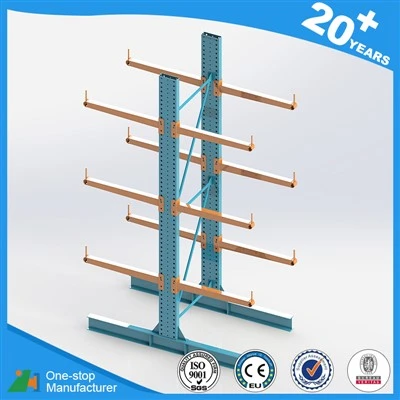

Industrial Double Sided Cantilever Racks
Provides dual-sided storage capacity in central warehouse aisles, doubled stocking throughput for heavy steel and timber yards.
Aisle Center Storage

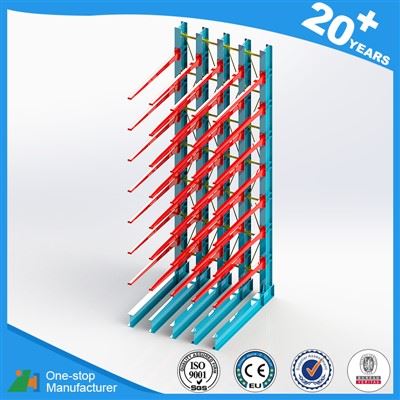

Heavy Duty Structural Cantilever Racks
Constructed from hot-rolled H-beams for heavy industrial applications requiring high impact resistance and severe structural loads.
High-Impact Capacity

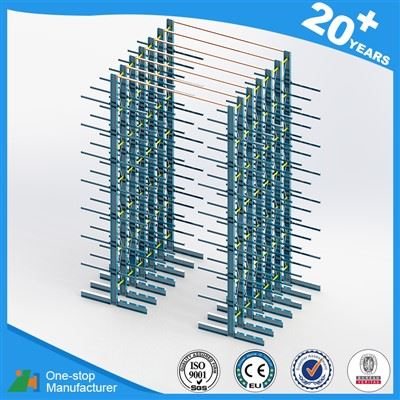

Outdoor Galvanized Cantilever Rack
Hot-dip galvanized finish combined with custom roof canopies for weather-proof outdoor storage yards and construction supply facilities.
Weather-Resistant

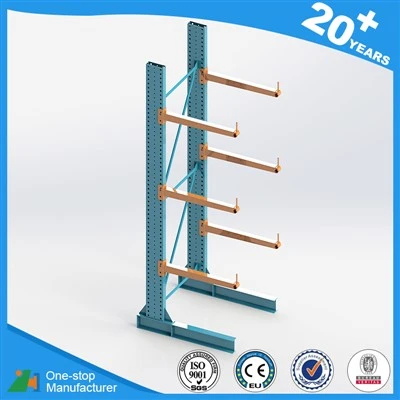

Adjustable Arm Cantilever Rack System
Features toolless pitch adjustment allowing warehouse operators to rapidly modify level heights for fluctuating inventory dimensions.
Flexible Pitch Height

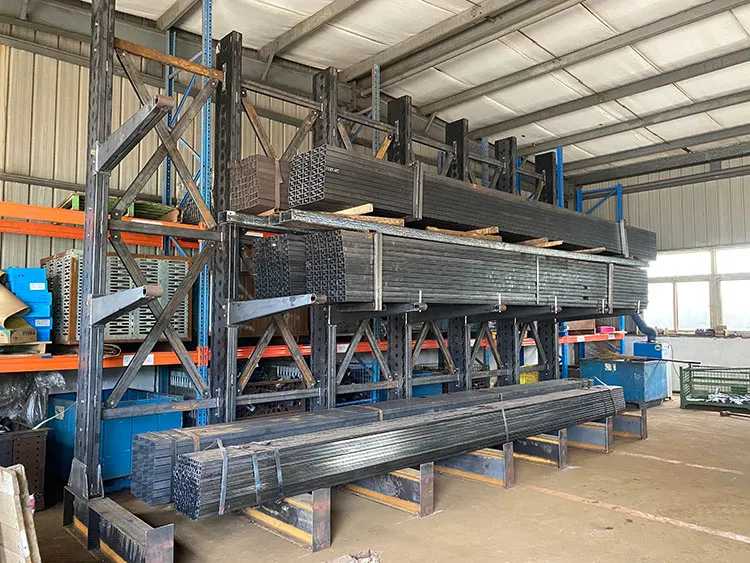

Heavy Pipe & Tube Storage Racks
Engineered with end-stoppers and pipe cradles to ensure secure stacking of cylindrical steel tubes, PVC pipes, and conduits.
Safety End-Stoppers Application Versatility
What Materials Can Be Stored on Cantilever Racks?
Cantilever racking solves complex storage challenges for goods that cannot fit standard pallet dimensions.

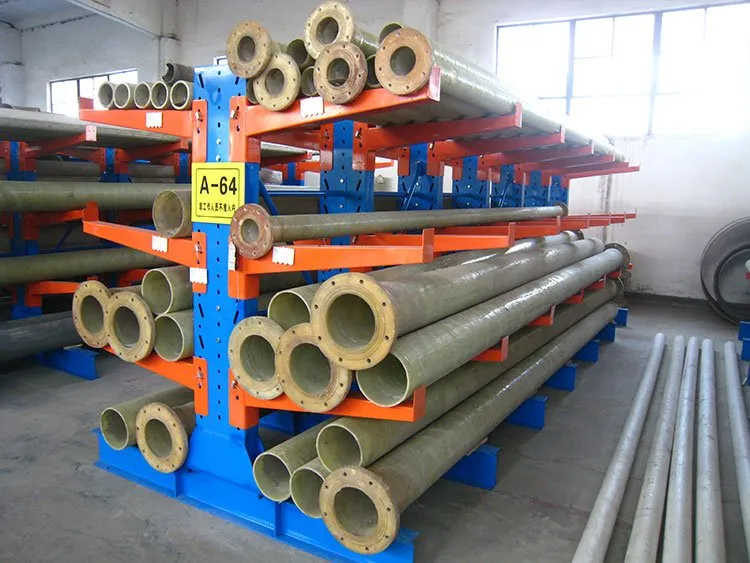

Steel Pipes & Tubes

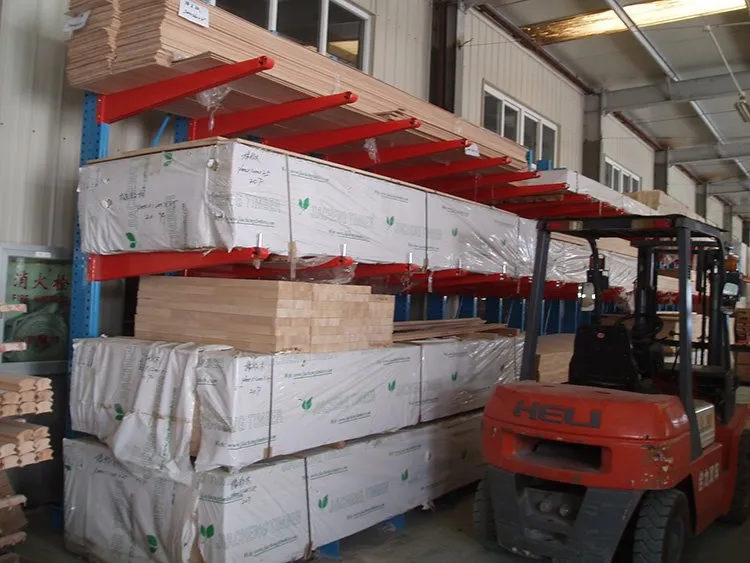

Lumber & Timber
Aluminum Profiles

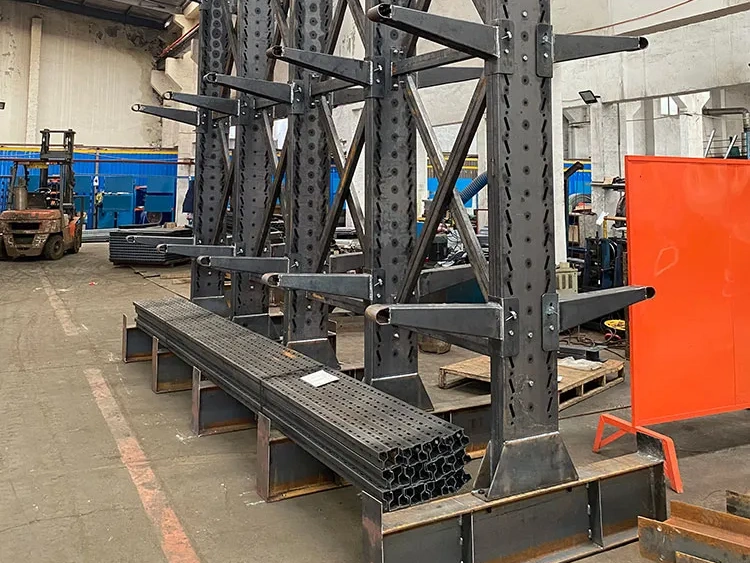

Building Panels

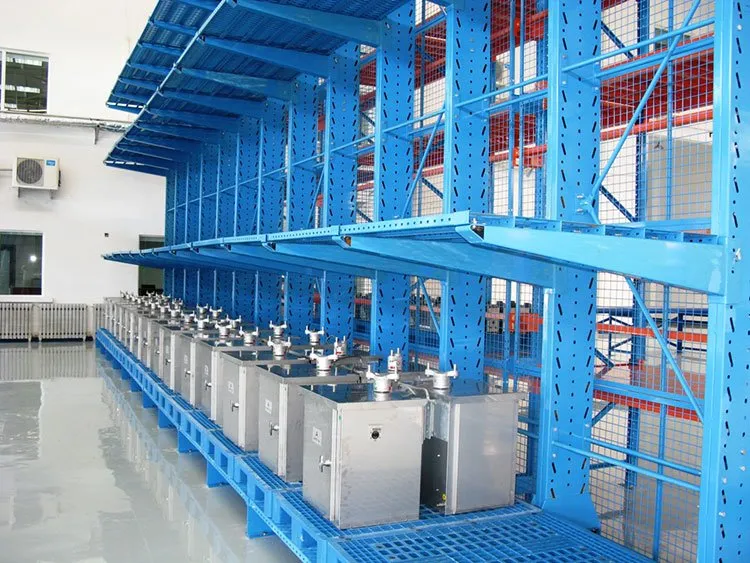

Industrial Equipment
System Advantages
Why Overseas B2B Buyers Choose PrimeBay Cantilever Racks
Designed for strength, accessibility, and long-term operating durability in demanding industrial conditions.
Unobstructed Front Loading
Open-front structure eliminates front vertical columns, enabling immediate crane or forklift access without damage to structural uprights.
High Heavy Load Rating
Formed from premium Q235B or Q355B cold-rolled steel or hot-rolled structural H-beams, supporting up to 5 tons per arm.
Modular Adjustable Arms
Cantilever arms adjust vertically on 100mm or 140mm pitch intervals, allowing rapid adjustments when inventory stock dimensions change.
Corrosion Resistance
Choose electrostatic epoxy powder coating for clean interior facilities or hot-dip galvanizing for severe outdoor weathering.
Maximized Vertical Space
Increases warehouse cubage utilization by converting scattered floor storage into clean, multi-level vertical inventory bays.
Custom OEM / ODM Service
Engineered layout drawings, specific RAL custom powder coating colors, tailored load capacities, and branded container packaging.
Engineering Specifications
Technical Parameters & Specifications
Review standard engineering choices for PrimeBay cantilever structural configurations.
| Technical Specification | Standard Engineering Parameter |
|---|---|
| Steel Grade | Q235B / Q355B Cold Rolled Steel or Structural Hot Rolled H-Beam |
| System Type | Single-Sided Racking (Wall Side) / Double-Sided Racking (Center Aisle) |
| Upright Height Range | 2,000 mm up to 12,000 mm (Custom height options available) |
| Arm Length Range | 500 mm up to 2,500 mm |
| Load Capacity Per Arm | Light Duty: 200–500 kg | Medium: 500–1,500 kg | Heavy Duty: 1,500–5,000 kg |
| Surface Finish | Thermohardening Epoxy Powder Coating (60-80μm) or Hot-Dip Galvanized (outdoor) |
| Pitch Adjustment Interval | 100 mm / 140 mm Adjustable bolt or pin connections |
| Safety Features | Removable Pipe Stop Pins, Heavy Base Anchor Bolts, Cross-Bracing Sets |
| Quality Certification | CE Mark, ISO 9001:2015 Quality Management, ISO 14001, TUV Verified |
Tailored System Engineering
Comprehensive Customization for Overseas Projects
At PrimeBay Heavy Duty Racking Co., Ltd., we do not believe in one-size-fits-all catalogues. Industrial storage demands rigorous structural analysis matching your exact material lengths, unit weight distribution, floor slab parameters, and forklift operating clearances.
Our engineering team delivers end-to-end design assistance to turn challenging building constraints into organized, highly productive inventory operations.
- Complete CAD floor plan engineering & structural load calculation
- Customized column gauge thickness, arm lengths, and base footprints
- Integrated roof arms and weather cladding for outdoor storage sheds
- Rigorous safety factor testing matching FEM and RMI international codes
Frequently Asked Questions
Cantilever Racking FAQ for Importers & Contractors
Find fast answers regarding product design, load limits, shipping, and installation support.
What materials are best suited for storage on cantilever racks?
Cantilever racking systems are specifically engineered for long, bulky, or non-standard items such as steel pipes, metal tubes, timber planks, aluminum extrusions, plastic piping, structural steel beams, and heavy furniture panels.
What is the weight capacity per arm for PrimeBay cantilever racks?
Arm load capacities range from 200 kg (light duty) up to 5,000 kg (extra heavy duty structural steel) per arm, depending on upright section selection, arm length, pitch, and warehouse engineering specifications.
Can cantilever racking systems be installed outdoors?
Yes. PrimeBay supplies hot-dip galvanized cantilever racks with optional roof arm attachments designed to withstand outdoor weather conditions, rain exposure, and coastal environments.
Does PrimeBay provide free layout design and engineering support?
Yes. Our engineering department provides complete structural CAD floor plan designs, structural load analysis, and seismic calculations tailored to your warehouse layout free of charge before production starts.
What is the standard lead time for factory production and shipping?
Standard manufacturing lead time is 15 to 25 days from layout confirmation. All materials are securely packaged with plastic steel banding, protective film, and timber blocks for safe ocean container freight.
