Featured Industrial Pallet Racking & Automated Systems
CE, ISO 9001, and TUV-certified heavy-duty warehouse storage solutions manufactured to EN 15512 structural specifications for Portuguese enterprises.
5 Layer Heavy Duty Racks And Shelves Very Narrow Aisle Pallet Vna Warehouse Racking For Storage Inventory Management
- Max Bay Load: Up to 18,000 kg
- Aisle Width: 1,500mm – 1,800mm
- Selectivity: 100% Direct Access
High Quality Portable Collapsible Steel Selective Pallet Rack with Corrosion Protection 1-5 Ton Capacity for Warehouse Storage
- Load Rating: 1,000 to 5,000 kg/tier
- Surface: Hot-Dip Galvanized / Epoxy
- Design: Stackable & Modular
CASE CARTER OEM Warehouse Stack Foldable Portable Vertical Steel Pallet Frame Nestainer Storage Rack System
- Nested Nesting Saving Ratio: 4:1
- Steel Grade: Structural Q235B
- Usage: Bulk Goods & Dynamic Stacking

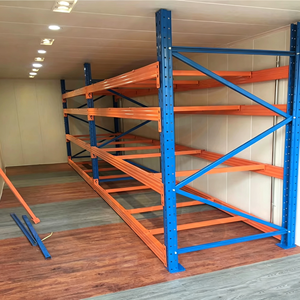

Heavy Duty Industrial Pallet Storage Racking 1000kg/2000kg/3000kg Capacity Per Layer Adjustable Steel Warehouse Rack
- Layer Capacity: 1,000kg - 3,000kg
- Pitch Adjustability: 50mm / 75mm
- Certification: CE / ISO9001 / TUV
Mracking Warehouse Storage Steel Gravity Flow Rack Heavy Duty Live Pallet Racking System 1000kg/layer
- Rotation System: Strict FIFO Gravity Rollers
- Braking System: Magnetic Speed Controllers
- Best For: Perishables & High Velocity
Custom Heavy-Duty Two-Story Mezzanine Racking Platform Warehouse Multi-Level Storage Flooring System in Red/Blue
- Floor Loading: 300 - 1,000 kg/m²
- Deck Options: Steel Grating / Plywood
- Structure: Multi-Tier Integrated Rack
Logistics Center Pallet Rack Warehouse Rack Manufacturer Q235B Steel Heavy Duty Storage Rack Custom Design ISO Certified System
- Steel Spec: Cold-Rolled Q235B / Q355B
- Seismic Standard: Eurocode 8 Compliant
- Finish: 80µm Electrostatic Powder
Heavy Duty Steel Pallet Storage Racks Complete Warehouse Pallet Racking Systems Solution Factory Wholesale
- Solution Type: Full Turnkey Engineering
- Warranty: 10-Year Structural Coverage
- Lead Time: 15–20 Days Production
The Evolution of Warehouse Automation in Portugal: Why Semi-Automated Pallet Racking dominates the Market
Portugal’s industrial real estate and logistics sector is experiencing an unprecedented structural transformation. Driven by the expansion of deep-water maritime logistics at the Port of Sines, the consolidated distribution hubs surrounding Azambuja, Castanheira do Ribatejo, and Vila Nova da Rainha, and the intense growth of e-commerce across the Greater Lisbon and Porto Metropolitan Regions, warehouse space has turned into a high-value commodity. Prime industrial land costs and escalating building construction expenses mean warehouse managers can no longer rely on conventional horizontal expansion.
To maximize volumetric floor-to-ceiling efficiency, Portuguese supply chain directors are rapidly transitioning toward Semi-Automated Pallet Racking Systems—most notably Radio Shuttle Racking Systems and Multi-Tier Mezzanines. Unlike fully automated ASRS systems, which demand high capital expenditure (CapEx), specialized IT maintenance, and multi-year rollout schedules, semi-automated radio shuttle pallet racking balances high density with accessible investment and swift deployment.
Furthermore, Portuguese structural regulations mandate strict compliance with EU standard EN 15512 (Steel static storage systems - Adjustable pallet racking systems - Principles for structural design) and Eurocode 8 (EN 1998) regarding seismic safety considerations in Southern Portugal and the Autonomous Regions of Madeira and Azores. As an established direct-factory manufacturer operating since 2006, PrimeBay Heavy Duty Racking Co., Ltd. custom-engineers racking profiles that fully comply with European static and dynamic structural safety thresholds.
Technical Data Matrix: Semi-Automated Radio Shuttle vs. Traditional Racking Systems
Choosing the correct storage geometry requires evaluating key metrics: pallet selectivity, SKU volume, forklift travel times, structural safety, and long-term total cost of ownership (TCO). Below is an engineering evaluation comparing the five dominant storage profiles deployed in Portuguese industrial facilities:
| Racking Architecture | Storage Density | Pallet Access Mode | Forklift Damage Risk | Operative Speed | Suitability for Portugal Market |
|---|---|---|---|---|---|
| Semi-Automated Radio Shuttle | Ultra High (85%+) | FIFO or LIFO Automated | Extremely Low | Fast (1.2 m/s Shuttle) | Cold storage, FMCG, Agro-food, High-density 3PL hubs |
| Selective Pallet Rack | Standard (40-50%) | 100% Direct Access | Medium | Standard | High-SKU distribution, manufacturing maintenance parts |
| Very Narrow Aisle (VNA) | High (65-75%) | 100% Direct Access | Medium (Requires Wire/Rail Guidance) | Moderate | Urban logistics parks with limited footprint & high vertical clearance |
| Drive-In Pallet Rack | High (70-80%) | Strict LIFO (Drive-Through FIFO) | High (Forklift Enters Rack) | Slow (Requires Careful Driving) | Homogeneous bulk goods, seasonal harvests (Cork, Canned Goods) |
| Push Back Racking | Medium-High (65%) | LIFO (2–5 Pallets Deep) | Low | Moderate-Fast | Intermediate storage for staging zones and loading bays |
PrimeBay Engineering Capabilities & Manufacturing Quality
From raw coil selection to automated powder coating, discover how PrimeBay delivers structural reliability to global buyers.
Structural Q235B & Q355B Steel
We source certified high-tensile cold-rolled steel coils exclusively from top-tier steel mills. Our upright profiles feature continuous punch hole patterns designed for maximum moment resistance and torsional stiffness under full load capacities.
CE, ISO 9001 & TUV Certified
Our 40,000m² Nanjing production plant adheres strictly to international quality and environmental management standards (ISO 9001, ISO 14001). Every pallet rack order is traceable down to the raw material batch certification.
Precision Automated Manufacturing
Utilizing automated continuous roll-forming lines, robotic welding stations, and an integrated 80-meter automatic electrostatic powder coating line ensuring superior corrosion resistance, dynamic finish quality, and exact tolerances.
Custom OEM/ODM Engineering
We provide full layout customization according to your specific warehouse CAD drawings, pallet specifications (EUR 1 800x1200mm, EUR 2 1200x1000mm), upright frame depths, beam heights, and distinct corporate color RAL schemes.
Smart Radio Shuttle Tech
Our semi-automated radio shuttles feature long-life LiFePO4 lithium batteries, optical acceleration sensors, obstacle anti-collision protection, and multi-mode remote wireless control suitable for ambient and -30°C cold store applications.
10-Year Structural Warranty
Every complete pallet racking system supplied by PrimeBay carries an extended 10-year structural warranty, backed by rigorous Finite Element Analysis (FEA) and static load safety calculations supplied directly to your engineering team.
Localized Application Scenarios across Portugal's Strategic Economic Hubs
Understanding local industry demographics enables PrimeBay to deliver tailored racking systems configured for specific operational scenarios across Mainland Portugal and its Autonomous Islands:
1. Port Logistics & Maritime Stacking (Sines & Leixões)
Portugal’s primary deep-water hub at Sines handles intense containerized freight movement. Logistics forwarders utilize PrimeBay heavy-duty selective and VNA racking systems to manage fast container de-consolidation, high-tier unit load distribution, and bonded warehouse overflow with structural Q355B steel designed for high dynamic loads.
2. Agro-Food & Wine Storage (Douro, Alentejo, Ribatejo)
The Portuguese food and beverage sector requires strict batch tracking and environmental control. Our semi-automated radio shuttle pallet systems allow winery operations and agricultural co-operatives to store vast batches of bottled goods and seasonal agricultural yields deep within temperature-controlled vaults using FIFO or LIFO operating logic.
3. E-Commerce & Retail 3PL Fulfillment (Lisbon & Porto)
High consumer density around Sintra, Loures, Azambuja, and Maia demands rapid order turnarounds. PrimeBay custom multi-tier mezzanine floor platforms integrated with gravity flow racks create multi-level manual picking floors that triple accessible floor area without expanding the building shell.
