Which certifications do PrimeBay racking systems carry?

Our production and products are certified to CE, ISO 9001 (quality management), ISO 14001 (environmental management) and TUV. Certificate copies are available on our Certification page and can be supplied with your quotation documents.

Can you design racking to my warehouse drawing?

Yes. Send your warehouse CAD or a sketch with clear height, column grid, pallet size, unit load weight, forklift type and target throughput. Our engineers return a layout, load calculation and bill of materials for review before production.

Do you offer OEM and ODM racking?

Yes. We supply OEM and ODM pallet racking and storage systems, including custom colors, upright profiles, beam sizes, branding and packaging for distributors and project contractors.

What warranty comes with your racking?

Our racking systems are covered by a 10-year product warranty when installed and used according to the approved design and load signage.

How do I choose between drive-in, push back and radio shuttle racking?

Drive-in racking suits low-SKU, high-volume LIFO storage at the lowest cost per pallet. Push back racking stores 2 to 5 pallets deep per lane with faster LIFO access. Radio shuttle racking reaches the highest density with FIFO or LIFO operation and reduces forklift travel inside the rack, making it ideal for cold storage and food and beverage warehouses.

Deep Lane Pallet Racking Supplier & Exporter in Colombia

Engineered Product Catalog

Industrial Deep Lane & Heavy-Duty Pallet Racking Portfolio

Precision-manufactured storage equipment tailored for high volumetric utilization, cold storage, and heavy unit loads across Colombia.

Industry Whitepaper

Deep Lane Storage Architecture & Colombia’s Modern Logistics Boom

Colombia is experiencing a transformative expansion in its industrial logistics ecosystem. Driven by strategic nearshoring initiatives, modern port developments in Buenaventura, Cartagena, and Barranquilla, and burgeoning consumer hubs across Bogotá DC, Medellín (Antioquia), and Cali (Valle del Cauca), logistics operators face an urgent imperative: maximize volumetric floor utilization while safeguarding structural stability under demanding environmental conditions.

Traditional selective pallet racking—while providing 100% immediate accessibility—requires aisle space that consumes upwards of 60% of total warehouse footprint. In prime industrial zones such as Funza, Cota, Fontibón, and Itagüí, where industrial real estate lease costs have reached record highs, low-density storage models severely penalize operating profitability. This technical report explores how Deep Lane Pallet Racking Systems—specifically Radio Shuttle, Push-Back, and Drive-In configurations—engineered by PrimeBay Heavy Duty Racking Co., Ltd. offer Colombian enterprises a high-gain solution to increase pallet density by up to 85%.

Information Gain Key Insight: Deep lane pallet racking replaces non-revenue-generating forklift aisles with continuous high-strength steel channels. In Colombian cold storage facilities (typically operating at -18°C to -25°C), transitioning from selective racking to automated deep-lane radio shuttle racking reduces cooled cubic space requirements by up to 45%, yielding massive electrical utility cost savings.

+85%

Storage Density Increase

-60%

Forklift Aisle Footprint

NSR-10

Seismic Code Compliant

10Yr

Structural Warranty

Understanding the Mechanics of Deep Lane Storage Systems

Deep lane storage refers to racking structures designed to store pallets multiple positions deep—ranging from 2 to 5 pallets in Push-Back systems, to over 40 pallets deep in fully automated semi-robotic Radio Shuttle systems. By loading pallets sequentially into channels, operators utilize vertical and horizontal volumetric envelope capacity efficiently.

However, implementing deep lane storage in Colombia demands strict structural design oversight. Colombia is situated within the Pacific "Ring of Fire," subject to significant seismic forces governed by the NSR-10 (Norma Sísmicamente Resistente Colombiana) structural code. Standard off-the-shelf racking built without customized seismic moment-frame connections, high-grade anchor bolts, and structural structural bracing poses severe structural collapse risks during seismic events in high-risk zones like Cali, Pereira, and Manizales. PrimeBay engineers every system with dynamic FEA (Finite Element Analysis) simulation to ensure full compliance with international FEM 10.2.02 and Colombian NSR-10 engineering parameters.

Technical Benchmarking

Deep Lane System Comparison: Radio Shuttle vs. Drive-In vs. Push Back vs. Double Deep

Selecting the optimal deep lane storage system requires evaluating SKU variety, inventory turnover velocity (FIFO vs. LIFO), pallet structural integrity, and forklift driver interaction. Below is a engineering evaluation table designed for procurement managers and logistics directors across Colombia:

Racking Architecture	Storage Density	Access Model	Max Lane Depth	Forklift Entry Required?	Colombian Market Suitability
Radio Shuttle System	Ultra High (85%)	FIFO & LIFO Flex	40+ Pallets Deep	No (Shuttle Cart Handles Lane)	Cold Storage, Agro-Exports, FMCG, Beverage
Drive-In / Drive-Through	High (70-75%)	LIFO (Drive-In) / FIFO	10-12 Pallets Deep	Yes (Forklift enters rack)	Bulk Manufacturing, Seasonal Crop Storage
Push Back Racking	Medium-High (65%)	Strict LIFO	2-6 Pallets Deep	No (Gravity-nested carts)	Intermediate SKU Counts, Cross-Docking
Double Deep Racking	Moderate (55-60%)	LIFO (50% Immediate)	2 Pallets Deep	No (Pantograph/Reach truck)	General Logistics, Manufacturing Parts

Engineering Deep-Dive: Why Radio Shuttle Racking Leads Colombia's Modernization

The semi-automated Radio Shuttle Racking System represents the benchmark in deep lane storage engineering. A self-powered motorized shuttle device travels along internal guide rails underneath pallet channels to lift, transport, and deposit pallets. Controlled via RF remote control or integrated WMS (Warehouse Management System) tablets, the system eliminates the primary hazard of traditional Drive-In racking: forklift collisions with structural upright frames.

In high-density industrial corridors like Rionegro (Antioquia) and Tocancipá (Cundinamarca), where labor safety standards (SISTEMA DE GESTIÓN DE LA SEGURIDAD Y SALUD EN EL TRABAJO - SG-SST) are strictly enforced, avoiding forklift entry into structural channels dramatically reduces warehouse incident rates and protects heavy steel frames from structural fatigue.

Localized Industry Fit

Tailored Application Scenarios Across Colombia’s Economic Hubs

PrimeBay manufactures and exports custom heavy-duty deep lane racking systems optimized for the specific environmental, regulatory, and industrial conditions of Colombia’s key economic regions.

Agro-Export & Cut Flowers (Sabana de Bogotá & Rionegro)

Colombia is the world's second-largest exporter of cut flowers and a premier exporter of Hass avocados and specialty coffee. Cold chain integrity is non-negotiable. PrimeBay Radio Shuttle systems operate flawlessly in cold rooms down to -25°C, ensuring rapid FIFO rotation for perishable floriculture and agricultural exports prior to air transport from El Dorado International Airport.

Port Logistics & Free Trade Zones (Cartagena & Barranquilla)

Hot and humid coastal marine environments present severe corrosion challenges to warehouse equipment. For Zona Franca facilities in Cartagena and Barranquilla, PrimeBay provides specialized hot-dip galvanized (HDG) steel guide rails and electrostatic epoxy powder-coated uprights (80-100μm thickness) tested for 500+ hours of salt-spray corrosion resistance.

Food, Beverage & FMCG Distribution (Cali & Yumbo)

Valle del Cauca hosts Colombia's primary FMCG and beverage manufacturing clusters. High-volume, low-SKU product lines require maximum throughput capacity. Deep-lane pallet shuttle racking allows continuous, automated batch staging for 24/7 manufacturing plants, buffering production outputs directly to dispatch docks.

Manufacturer Authority

Why Colombian Logistics Leaders Partner with PrimeBay Heavy Duty Racking

As a global OEM/ODM manufacturer with over two decades of dedicated structural racking engineering experience, PrimeBay Heavy Duty Racking Co., Ltd. operates a state-of-the-art 40,000 m² manufacturing plant in Nanjing, China. We bridge the gap between world-class engineering quality and direct-from-factory cost advantages for Colombian importers, 3PL distributors, and general contractors.

CE, ISO & TUV Certified Production

Our factory strictly adheres to ISO 9001 quality management, ISO 14001 environmental safety, and European CE structural certification. Structural steel raw materials (Q235B & Q355B) undergo rigorous tensile and yield stress testing.

End-to-End Export Logistics to Colombia

We manage export shipping directly to major Colombian ports: Puerto de Buenaventura (Pacific) and Puerto de Cartagena (Caribbean). Systems are sea-freight packed with waterproof bundling and anti-scratch foam wrap.

Custom OEM/ODM CAD & FEA Engineering

Every quote includes complimentary 2D/3D warehouse CAD design layouts and structural calculation reports tailored to your building clear height, slab thickness, and specific forklift specs.

Buyer Knowledge Base

Frequently Asked Questions: Purchasing Deep Lane Racking in Colombia

Clear, direct answers for warehouse managers, industrial engineers, and procurement specialists importing steel racking to Colombia.

1. How do PrimeBay racking systems comply with Colombian Seismic Norm NSR-10? +

Colombia is divided into distinct seismic hazard zones under NSR-10 (Norma Sísmicamente Resistente). High-risk zones like Cali, Armenia, and Pereira require customized structural engineering. PrimeBay engineers design heavy-duty racking uprights with heavy-gauge cold-rolled steel profiles, enlarged seismic footplates (baseplates), and specialized anchor bolts (Hilti/Fischer equivalent) capable of withstanding dynamic horizontal forces. We calculate maximum deflection ratios (L/200) to ensure complete structural stability during seismic events.

2. What are the import tax duties (Arancel e IVA) for steel racking entering Colombia? +

Steel racking systems exported from China to Colombia typically fall under Partida Arancelaria (HS Code) 7308.90.90.00 or 9403.20.00.00 depending on final structural design. The standard import tariff (Arancel) is generally 5% to 10%, combined with the national value-added tax (IVA) of 19%. Buyers operating inside Free Trade Zones (Zonas Francas) like Zona Franca Fontibón, Zona Franca de Bogotá, or Zona Franca Candelaria can suspend IVA and duty payments. PrimeBay provides full export documentation (Commercial Invoice, Packing List, Bill of Lading, Certificate of Origin Form E/CO) to streamline DIAN customs clearance.

3. How do I choose between Radio Shuttle Racking and Drive-In Racking for a warehouse in Bogotá? +

Choose Drive-In Racking if you have a tight budget, low SKU diversity, and low pallet movement speed. Drive-In provides high density at the lowest initial cost per pallet, but requires forklift drivers to physically enter deep steel racks, which increases collision risk. Choose Radio Shuttle Racking if you operate cold storage facilities, require high speed, handle medium-to-high throughput, or want the flexibility to switch between FIFO (First-In, First-Out) and LIFO (Last-In, First-Out). Radio shuttle eliminates rack frame collisions and reduces forklift operator labor costs by over 50%.

4. What is the typical lead time from order confirmation to installation in Medellín or Cali? +

Manufacturing at our Nanjing plant requires approximately 20 to 25 days depending on project volume. Ocean freight transit from Chinese ports (Ningbo/Shanghai) to Puerto de Buenaventura takes approx. 28 to 35 days, or to Puerto de Cartagena approx. 30 to 35 days. Inland trucking to central hubs like Bogotá, Medellín, or Cali adds 3 to 5 days. Total estimated timeline from project approval to warehouse delivery is approximately 8 to 10 weeks.

5. Does PrimeBay provide installation support and assembly drawings for Colombian engineering teams? +

Yes. Every project includes comprehensive 3D assembly engineering drawings, step-by-step installation manuals, torque specs for anchor bolts, and structural load plaques in Spanish. For large turnkey warehouse developments, PrimeBay can dispatch certified installation engineers to supervise local assembly teams or provide live remote video technical assistance throughout the installation process.

Deep Lane Pallet Racking Supplier & Exporter in Colombia

Industrial Deep Lane & Heavy-Duty Pallet Racking Portfolio

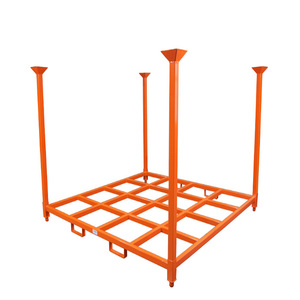

Heavy Duty Warehouse Storage Steel Stacking Movable Post Pallet Racks

Pallet Shuttle Rack Deep Lane Storage & Retrieval System

Radio Shuttle Pallet Racking 40m Deep Lane Automated Configuration

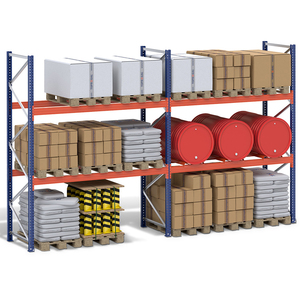

Industrial Anti-Corrosion Heavy Duty Warehouse Pallet Rack System

CE Certified Two-Way Shuttle Clad Integrated Warehouse Rack

Heavy Duty Industrial Agricultural & Fruit Storage Rack (800kg+)

Double Deep High Capacity Pallet Racking System for Reach Truck

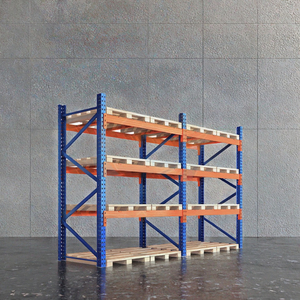

Seismic Resistant Stacking Beam Pallet Rack System (NSR-10 Standard)
