Engineered Industrial Warehouse Racking Systems
Direct factory supply of certified heavy-duty racking, radio shuttle systems, and mezzanine structures customized for Bangladesh's expanding industrial logistics sector.
CE Certified Industrial Warehouse Stacking Shelves Pallet Rack Storage System for Logistic Center
Inquire Now

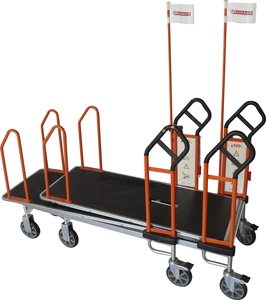

Heavy Duty Multipurpose Storage Rack Cage Cart Door and Window Cargo Warehouse Workshop Turnover Trolley
Inquire Now
High Performance Heavy Duty Logistics Shelves Stocking Warehouse Storage Rack Pallet Rack for Heavy-Duty Reticulated Shelf
Inquire Now
Customized Heavy Duty Drive In Pallet Rack Q235 Steel, High Capacity Warehouse Storage Racking Solution for FIFO FILO Inventory
Inquire Now
Customized Mezzanine Floor Racking Heavy-Duty Warehouse Storage Racks Shelving Units Supported Steel Platform Attic Rack
Inquire Now
Customizable Multi-Deep 4-Way Shuttle Pallet Racking System | High-Density Automatic Pallet Rack Storage for Distribution Center
Inquire Now
BRIO Modern Heavy Metal Steel Column Crash Safety Upright Pallet Racking Protection System Rack Supports Guard Warehouse
Inquire Now
Industrial Racks Heavy Duty Selective Eu Standard Pallet Racking for Multi-layer Storage Rack and Double Deep Pallet Rack
Inquire NowIndustry White Paper: Structural Engineering of Radio Shuttle Racking for Bangladesh
As Bangladesh cements its status as a global manufacturing powerhouse and regional logistics hub across South Asia, warehouse operators in Dhaka, Chattogram, Gazipur, and Narayanganj face severe spatial constraints and escalating industrial real estate prices. Traditional static storage models—such as floor stacking and standard selective pallet racking—are no longer economically viable for high-density inventories.
The Radio Shuttle Pallet Racking System represents a pivotal paradigm shift toward semi-automated warehouse storage. Engineered with high-precision cold-rolled Q235B and Q355B structural steel profiles, this system utilizes a self-propelled, remote-controlled shuttle car that navigates along heavy-duty guide rails within deep storage channels. By eliminating the necessity for forklifts to enter storage aisles, the system maximizes floor area utilization up to 85% while reducing structural damage risks and operational cycle times.
Technical Specifications & Engineering Comparison Data
| Racking Performance Indicator | Radio Shuttle Racking System | Drive-In Pallet Racking | Selective Pallet Racking | Automated ASRS System |
|---|---|---|---|---|
| Storage Density Efficiency | Very High (80%–85%) | High (65%–75%) | Standard (40%–50%) | Maximum (90%+) |
| Pallet Access Flexibility | FIFO or LIFO Selectivity | Strict LIFO Only | 100% Direct Access (FIFO) | 100% Computerized FIFO |
| Forklift Operating Aisle Width | Narrow (2.8m - 3.2m) | Medium (3.2m - 3.5m) | Wide (3.5m - 4.2m) | Zero Aisle (Crane Guided) |
| Throughput Speed (Pallets/Hr) | 45 – 60 Pallets / Hour | 18 – 25 Pallets / Hour | 25 – 35 Pallets / Hour | 80+ Pallets / Hour |
| Structural Integrity & Safety | Optimal (Zero Forklift Entry) | High Risk (Forklift Collision) | Moderate (Aisle Impact Risk) | Optimal (Enclosed System) |
| Capital Investment ROI (Years) | 1.8 – 2.5 Years | 2.0 – 3.0 Years | Immediate / Low Cost | 5.0 – 7.0 Years |
Tailored Racking Solutions for Bangladesh Industrial Sectors
Custom engineering deployed directly to match the climate, supply chain dynamics, and structural requirements of Bangladesh's key industrial hubs.
Dhaka & Gazipur Ready-Made Garments (RMG) & Textile Logistics
In the high-volume garment hubs of Ashulia, Gazipur, and Savar, textile manufacturers handle tens of thousands of raw fabric rolls and packaged apparel cartons daily. Radio Shuttle Racking allows 40-foot deep lane storage for specific fabric colors and styles. By implementing high-density semi-automation, apparel exporters double their storage capacity within existing building footprints, ensuring fast staging for ocean container loading bound for Chittagong Port.
Chattogram Maritime Port & Export Processing Zones (EPZ)
Industrial land adjacent to Chittagong Port commands high lease rates. Logistics facilities operating in Karnaphuli and CEPZ demand maximum vertical cube utilization. Our custom heavy-duty selective and multi-deep 4-way shuttle systems utilize vertical heights up to 16 meters, accommodating international ISO pallet dimensions (1200x1000mm and 1200x1200mm) with dynamic load capacities reaching 1,500 kg per pallet position.
Pharma & Cold Chain Storage in Narayanganj & Cumilla
Bangladesh’s rapid expansion in pharmaceutical exports and frozen seafood processing requires strict temperature-controlled environments down to -25°C. Operating cold storage facilities in sub-tropical climates entails substantial electrical costs. Radio Shuttle systems compress stored inventory into dense blocks, drastically reducing cooling air volume lost to empty aisles and saving up to 35% in refrigeration energy consumption.
Fast-Moving Consumer Goods (FMCG) Distribution Centers
FMCG distributors serving the Dhaka Metropolitan area operate under rapid batch turnover constraints. Equipped with smart FIFO (First-In, First-Out) radio shuttle software, operators load pallets at the rear of the rack while shuttles push inventory automatically to the front picking face, eliminating inventory obsolescence and streamlining urban delivery truck dispatch.
Bangladesh Warehouse Modernization Trends & Economic Drivers
As Bangladesh moves toward graduation from Least Developed Country (LDC) status under Vision 2041, logistics infrastructure modernization has become a strategic priority. The completion of mega-infrastructure projects—including the Padma Bridge rail link, Dhaka Elevated Expressway, and Matarbari Deep Sea Port—is triggering a massive consolidation of fragmented warehouse spaces into modern, high-bay distribution logistics parks.
Furthermore, tropical climate considerations—specifically Bangladesh’s high relative humidity during the monsoon season (averaging over 80%)—demand enhanced anti-corrosion surface treatments. PrimeBay implements automated 16-stage pre-treatment and electrostatic epoxy powder coating standards, delivering a coating thickness exceeding 90μm to prevent micro-rusting and structural metal fatigue over extended operational lifespans.
Why PrimeBay is the Preferred Racking Manufacturer for Bangladesh
Direct Chinese factory pricing combined with rigorous European engineering compliance, ISO-certified manufacturing, and localized project execution.
Certified Raw Materials
Exclusively sourced structural steel from China's top steel mills (BaoSteel, Shougang Group). We utilize certified Q235B and high-yield strength Q355B cold-rolled steel profiles tested for tensile strength and ductility.
Global Quality Compliance
Our production facilities operate strictly under ISO 9001 quality management and ISO 14001 environmental protocols. All pallet racking systems carry CE certification and fully satisfy European FEM 10.2.02 and SEMA standards.
Automated Robotic Production
Equipped with 24 continuous automated roll-forming lines, robotic laser welding cells, and Swiss Gema automatic powder coating booths, guaranteeing continuous precision and component interchangeability.
Custom CAD & Structural Finite Element Analysis
Our structural engineering department provides complimentary 3D AutoCAD warehouse layout designs and ANSYS Finite Element Analysis (FEA) to verify beam deflection and frame stability under local seismic stress.
Robust Lithium Battery Technology
Our radio shuttles feature high-capacity Lithium Iron Phosphate (LiFePO4) battery packs with 8–10 hours of continuous operational autonomy and rapid 3-hour fast-charging capabilities tailored for industrial power grids.
Turnkey Export & Installation Support
Full support for export documentation tailored to Bangladesh customs (Country of Origin certificates, Form E/FTA, L/C compliance), coupled with detailed assembly drawings and remote/on-site installation guidance.
Frequently Asked Questions for Importing Racking to Bangladesh
Direct technical and commercial answers addressing shipping, customs clearance, structural installation, and maintenance for Bangladesh warehouse operators.
1. Warehouse floor dimensions (CAD DWG file or hand drawing showing column grid spacing, building clear height, and door locations).
2. Pallet specifications (Width x Depth x Height including cargo weight per pallet, e.g., 1200mm x 1000mm x 1500mm @ 1,000 kg).
3. Forklift operational parameters (Maximum lift height, turning radius, mast collapsed height).
4. Ambient working temperature (Ambient warehouse or Cold room temperature).
Ready to Double Your Warehouse Storage Density in Bangladesh?
Consult with our senior structural racking engineers today. Get a custom 3D warehouse design layout, dynamic load calculation, and factory-direct price quote within 24 hours.
