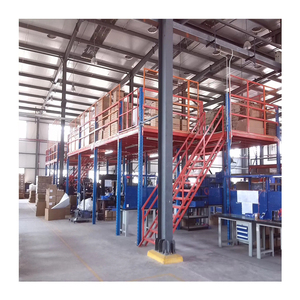

HUAWU Hw-mf54 Heavy Duty Steel Industrial Racks Pallet Racking Systems 2 Layer Mezzanine Floor Platforms Corrosion Protection
CASE CARTER OEM Warehouse Stack Foldable Portable Vertical Steel Pallet Frame Nestainer Storage Rack System

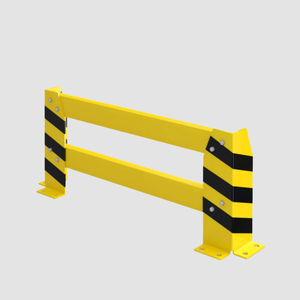

BRIO Modern Heavy Metal Steel Column Crash Safety Upright Pallet Racking Protection System Rack Supports Guard Warehouse
Wooden Nightstand Organizer Night Stand Desk Charging Station Watch Glasses Storage Rack Wooden Mobile Phone Docking Station
Heavy Duty Selective Pallet Rack 5 Ton Capacity Industrial Warehouse Storage Shelving System Adjustable Steel Rack
Customizable Multi-Deep 4-Way Shuttle Pallet Racking System | High-Density Automatic Pallet Rack Storage for Distribution Center
Navigating China’s Medium & Heavy-Duty Racking Manufacturing Landscape
In modern supply chain management and automated logistics engineering, warehouse spatial density and structural integrity directly govern bottom-line profitability. As global supply chains adjust to high-frequency SKU turnover, selecting the correct China medium duty pallet racking suppliers and exporters requires going beyond surface-level unit pricing. Buyers must evaluate cold-rolled steel mechanical properties, finite element analysis (FEA) modeling, structural load safety coefficients, and surface passivation engineering.
Medium-duty racking systems, typically classified by unit load thresholds between 200 kg and 800 kg per beam level (expanding up to 1,500 kg+ in hybrid heavy-medium profile iterations), represent the most versatile structural tier in industrial storage. Unlike heavy-duty selective racking designed exclusively for multi-ton palletized forklift retrieval, or light-duty longspan shelving built for manual hand-picking, engineered medium-duty pallet racking functions as the backbone of e-commerce fulfillment centers, automotive spare parts depots, pharmaceutical clean-rooms, and multi-tier mezzanine floor staging areas.
This technical whitepaper provides an exhaustive technical benchmark for global procurement officers, logistics integration consultants, and warehouse infrastructure directors. It dissects structural profile metallurgy, structural standards (including FEM 10.2.02, RMI, and ANSI MH16.1), export quality verification protocols, and strategic sourcing frameworks when partnering with top tier Chinese manufacturing hubs like PrimeBay Heavy Duty Racking Co., Ltd.
Technical Differentiation Across Racking Classifications
Understanding profile geometry, steel grades, and load distribution mechanics ensures long-term operational resilience.
Q235B vs Q355B Steel Metallurgical Standards
Premium Chinese racking manufacturers utilize high-tensile cold-rolled structural steel (Q235B or Q355B). Q355B offers a yield strength exceeding 355 MPa, delivering a 30% increase in structural load resilience per kilogram of steel compared to standard commercial mild steels.
Cold Roll-Forming Multi-Rib Upright Geometry
Advanced upright profiles feature up to 12-to-18 cold-bent structural folds along the column cross-section. This geometric multi-ribbing drastically elevates the moment of inertia, preventing torsional flexure and buckling under asymmetrical eccentric loads.
Electrostatic Epoxy Powder Passivation
Industrial corrosion resistance requires pre-treatment degreasing, zinc-phosphate conversion coating, and a 60–90 micron thermosetting epoxy-polyester powder coat, cured at 200°C to withstand humid, chemical, and cold-storage environments.
Medium-Duty vs. Heavy-Duty Structural Engineering Matrix
The table below provides direct engineering comparisons to assist procurement teams in matching operational throughput with structural profile dimensions.
| Structural Attribute | Medium-Duty Racking (Longspan / Light Pallet) | Heavy-Duty Selective Pallet Racking | High-Density Automated Shuttle Systems |
|---|---|---|---|
| Typical Bay Load Range | 200 kg – 800 kg per level | 1,000 kg – 4,500 kg per level | 1,000 kg – 1,500 kg per shuttle unit |
| Upright Section Dimensions | 55×47mm, 60×50mm (1.5mm – 1.8mm thk) | 80×60mm, 90×70mm, 100×75mm (2.0–3.0mm thk) | 90×70mm, 120×95mm Custom Heavy Profiles |
| Beam Profile Configurations | Step Beam, P-Type Beam, Tube Beam | Twin-C Box Beam, Interlocking Step Beam | Specialized Cold-Formed Guide Rail Beams |
| Pitch Adjustability | 50mm or 75mm continuous pitch perforation | 50mm, 75mm, or 76.2mm (3-inch) pitch | Fixed-rail automated precision positioning |
| Primary Handling Method | Manual hand-picking, light stacker cranes | Counterbalance, Reach Trucks, VNA Turret Trucks | Radio Shuttles, 4-Way Autonomous Shuttles, ASRS |
| Safety Factor Compliance | 1.5 : 1 ratio (EN 15512 / FEM 10.2.02) | 1.65 : 1 ratio (ANSI MH16.1 / RMI) | 1.8 : 1 dynamic impact allowance rating |
Why Global Importers Partner with PrimeBay Heavy Duty Racking
Certified Global Quality Framework
PrimeBay's production systems comply with CE, ISO 9001 quality management, ISO 14001 environmental management, and TUV structural testing certifications. Every shipment includes structural calculation reports and material test certificates (MTC).
Full In-House Manufacturing Loop
Operating a massive 40,000 m² production facility in Nanjing, China, PrimeBay controls every phase from steel strip uncoiling and continuous roll-forming to robotic welding, automated powder coating, and seaworthy bundling.
Bespoke OEM & ODM Engineering
We provide comprehensive OEM/ODM customization for international racking distributors, including custom beam connectors, proprietary column punched hole patterns, corporate powder coat color matching, and private label packaging.
10-Year Structural Integrity Warranty
Every customized medium-duty and heavy-duty storage system designed by PrimeBay comes backed by a 10-year structural warranty, engineered to withstand rigorous multi-shift warehouse operations under certified design loads.
Future Outlook: Evolution of Medium Duty Racking Technology
As automation costs decrease and spatial real estate premiums rise globally, the medium-duty racking sector is undergoing pivotal technical transformations. Forward-thinking buyers and logistics system integrators should consider these emerging engineering shifts during supplier evaluation:
1. Convergence with Autonomous Mobile Robots (AMRs)
Traditional manual medium-duty shelving is rapidly evolving into AMR-compatible pick structures. Base frames are now designed with widened ground clearance, laser reflector mounts, and high-flatness lower shelf decking to facilitate seamless underside navigation by autonomous robots.
2. High-Density Multi-Tier Mezzanine Optimization
Rather than expanding building footprints, global enterprises are utilizing rack-supported mezzanine platforms. Medium-duty profiles act as structural support columns for 2-tier and 3-tier catwalk floors, maximizing vertical cubic space utilization by up to 200%.
3. Eco-Friendly Zero-VOC Powder Coating Formulations
Environmental compliance laws in North America and Western Europe have elevated demand for zero-VOC electrostatic powder finishes. Leading Chinese manufacturers are integrating closed-loop water treatment and low-energy infrared curing ovens to meet global ESG standards.
4. Modular Fast-Assembly Lock Mechanisms
To reduce on-site installation labor expenditures, next-generation medium-duty systems feature boltless, snap-in beam connectors with integrated automatic safety pins. This cuts field assembly duration by over 35% while eliminating missing bolt risks.
5-Stage Quality Audit Checklist for Importing Racking from China
Overseas buyers can prevent project delays, freight damage, and structural compliance failures by implementing this rigorous 5-stage verification process prior to issuing purchase orders:
- Mill Test Certificate (MTC) Verification: Ensure raw steel coils are sourced from top-tier steel mills (such as Baosteel or Shougang) with certified Q235B/Q355B yield and tensile parameters.
- Punching & Roll-Forming Tolerances: Audit column hole pitch consistency. Pitch errors must remain under ±0.5mm over a 6-meter span to guarantee effortless connector beam engagement.
- Powder Coating Adhesion Testing: Require cross-hatch tape adhesion tests (ISO 2409 / ASTM D3359) and salt-spray corrosion exposure reports (minimum 500 hours neutral salt spray).
- Container Loading Density Optimization: Confirm knock-down packaging specifications. Upright frames should be nested with protective cardboard strips and heavy steel strapping to maximize 40ft High Cube container volumetric load capacity.
- Engineering CAD & Structural Stamp: Request detailed CAD layouts showing seismic zone clearance, floor slab loading pressure calculations (point load distribution), and beam deflection limit verification ($L/200$).
