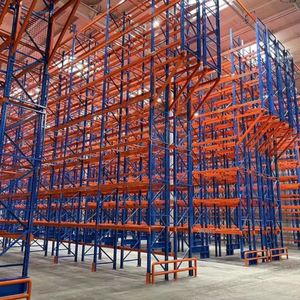

Narrow Aisle Layout Telescopic Reach Truck Matching Double Depth Rack Optimized Warehouse Space Double Deep Pallet Racking Heavy
Send an Inquiry
CASE CARTER OEM Stack 4-6 High Customized Metal Stillage Portable Detachable Stackable Post Pallet Stacking Rack
Send an Inquiry
Automated Storage and Retrieval System Warehouse Bins Storage Solutions Pallet Rack ASRS Racking System
Send an Inquiry
Industrial Heavy-Duty Metal Rack Adjustable Steel Pallet Racking System Durable Anti-Rust Storage Shelves For Warehouse Storage
Send an Inquiry

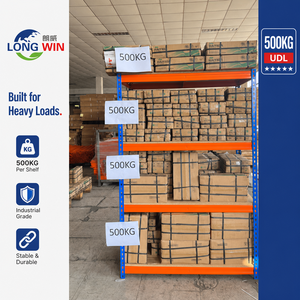

Extra Heavy Duty Boltless Steel Rack 5-Tier Adjustable 2000kg Rivet Lock Garage Warehouse Heavy Duty Warehouse Rack
Send an Inquiry
Industrial Steel Mezzanine Floor Customizable Load Capacity Creates Extra Storage Space Rack Supported Corrosion Platform
Send an Inquiry
Custom Heavy-Duty Racking System Metal Shelving Unit Corrosion-Protected Cold Rolled Steel Stacking Rack For Warehouse Storage
Send an Inquiry
Technical White Paper
Engineering Excellence in Heavy Steel Coil Storage Racking Systems
Understanding the physics, structural mechanics, and anti-tipping protocols required for high-tonnage industrial steel coil, aluminum wire, and heavy metal spool warehousing.
Concentrated Line Load Management
Unlike standard uniform palletized loads, cylindrical steel coils apply severe concentrated point and line loads onto support beams. Premier Chinese suppliers utilize high-tensile structural steel profiles (such as Q355B/Q460 cold-rolled steel) paired with heavy-duty V-shaped steel saddles and polyurethane-lined coil cradles to safely distribute weight across the structural upright frame.
Anti-Roll & Seismic Dynamic Locks
Safety in coil racking hinges on zero-movement guarantees. Custom coil storage pallet racks integrate mechanical positive locking pins, adjustable stop blocks, and reinforced diagonal cross-bracing engineered to resist dynamic thrust forces generated during overhead crane placement or high-reach forklift retrieval, complying with FEM 10.2.02 standards.
Custom Modular Adaptability
Modern steel coil supply chains require variable storage configurations. Leading manufacturers design adjustable rack beam levels with pitch increments of 50mm or 75mm, allowing seamless reconfiguration between master coil storage, slit coil cradles, wire rod spools, and heavy stamping die components within a unified footprint.
Information Gain: Structural Calculation & Deflection Safety Limits
When selecting a China coil storage racking exporter, verify their structural Finite Element Analysis (FEA). Standard warehouse pallet racks allow a beam deflection ratio of L/200. However, for heavy-duty coil storage exceeding 5,000 kg per position, structural safety guidelines dictate a maximum deflection limit of L/300 or L/400 to prevent continuous elastic deformation and saddle displacement.
Specification Matrix
Comparison of Heavy-Duty Coil Storage Systems
Select the optimal system architecture based on coil weight, access frequency, and facility floor slab dynamic rating.
| Racking Architecture | Typical Coil Weight Range | Handling Machinery | Storage Density | Primary Industrial Application |
|---|---|---|---|---|
| Heavy Duty V-Saddle Selective Coil Rack | 3,000 kg – 15,000 kg / cradle | C-Hook Crane / Heavy Forklift | Medium (100% Selectivity) | Steel Service Centers, Metal Stamping Plants |
| Stackable Portable Coil Post Pallet Stillage | 1,500 kg – 5,000 kg / unit | Standard Forklift / Pallet Jack | High (Stack 4-6 High) | Automotive Tier-1 Suppliers, Temporary Buffer Warehouses |
| Heavy Structural Steel Cantilever Coil Rack | 2,000 kg – 10,000 kg / arm | Side Loader / Overhead Crane | Flexible Lengths | Aluminum Extrusion Mills, Wire & Cable Spools |
| Automated Coil ASRS High-Bay System | 5,000 kg – 30,000 kg / bay | Automated Stacker Crane (SRM) | Maximum Vertical Density | Smart Steel Mills, Automated Logistics Hubs |
