High-Performance Pallet Racking & Shuttle Solutions
Directly engineered for automated order fulfillment hubs, high-density cold storage, and heavy-load industrial warehouses.
2-5 Tier Wide Aisle Heavy Load Pallet Racking for Automated Warehouse Online Order Fulfillment Hub
Warehousing Storage Heavy Duty Steel Fabric Multi-Level Corrosion Protection Truck Tyre Cold Storage Stacking Metal Racks

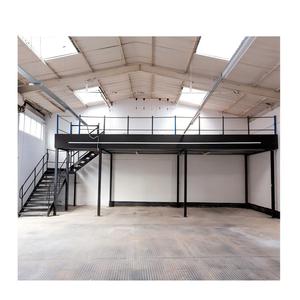

High Capacity Mezzanine Floor Heavy Duty Structural Steel Platform For Warehouse

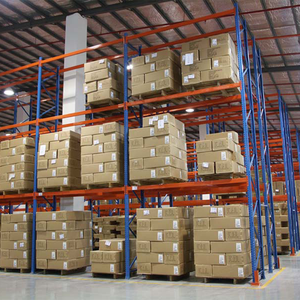

Reinforced Steel Selective Pallet Racking with Safety Guard for Project Warehouse

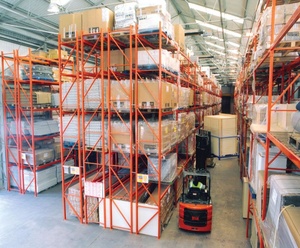

Double Deep Pallet Racking High Capacity Storage System Suitable for Reach Truck Forklift Optimize Warehouse Space Utilization
Warehouse Storage Automated Pallet Runner Shuttle Racking System
CASE CARTER OEM Stack 4-6 High Customized Metal Stillage Portable Detachable Stackable Post Pallet Stacking Rack
Industrial Logistics Warehouse Storage Rack Heavy Duty Steel Pallet System
Understanding Satellite Pallet Racking Systems (Radio Shuttle Technology)
Satellite pallet racking—commonly known as Radio Shuttle Racking or Pallet Runner Systems—represents the pinnacle of semi-automated high-density storage technology. By combining specialized deep-lane racking channels with autonomous battery-powered shuttle carts, satellite racking eliminates the structural vulnerabilities and operational slowness of traditional Drive-In racking while maximizing cubic storage density far beyond Selective Pallet Racking.
In modern industrial logistics, supply chain decision-makers face intense pressure to reduce cost-per-pallet position while accelerating inventory throughput. Satellite racking fulfills both demands by utilizing an independent motorized cart controlled via radio frequency (RF) or integrated Warehouse Control Systems (WCS). The shuttle runs along specialized rails embedded inside the rack channels, lifting, transporting, and positioning pallets automatically. Forklifts operate exclusively at the face of the racking structure, avoiding lane entry entirely.
Maximum Spatial Density
Utilizes up to 85% of building height and footprint by eliminating operational forklift aisles, achieving up to 3x the storage volume of standard racking.
FIFO & LIFO Versatility
Easily software-configured for First-In-First-Out (FIFO) food perishables or Last-In-First-Out (LIFO) bulk consumer goods without structural modifications.
Zero Impact Safety
Because forklifts never enter the rack tunnels, structural upright damage is reduced by over 90%, significantly enhancing workplace safety and rack lifespan.
Engineering Comparison: Satellite Racking vs. Legacy Storage Modalities
| Storage Modality | Space Utilization Efficiency | Pallet Access Selectivity | Structural Damage Risk | Cold Storage Suitability | Operational Speed |
|---|---|---|---|---|---|
| Satellite / Radio Shuttle Racking | Extreme (80% - 90%) | Lane-based (High) | Very Low (No truck entry) | Excellent (-30°C certified) | Fast (Automatic shuttle run) |
| Selective Pallet Racking | Standard (35% - 45%) | 100% Direct Access | Medium | Low (High air heating cost) | Moderate (Forklift travel) |
| Drive-In Pallet Racking | High (65% - 75%) | Strict LIFO (Low) | High (Trucks enter lanes) | Moderate | Slow (Requires precise driving) |
| Push Back Racking (Cart System) | Medium-High (60% - 70%) | 2-6 Deep LIFO | Low-Medium | Moderate | Moderate (Gravity return) |
| Automated Storage & Retrieval (ASRS) | Maximum (90%+) | 100% Computer Automated | Negligible | Exceptional | Maximum (Fully automated) |
Top 10 Global Satellite Pallet Racking Manufacturers
An objective benchmarking analysis based on steel fabrication quality, structural testing standards (FEM / RMI), shuttle battery technology, automation integration, and global export capability.
1. PrimeBay Heavy Duty Racking Co., Ltd.
Best Overall Value & OEM/ODM Engineering LeaderFactory Overview: Operating a state-of-the-art 40,000 m² manufacturing plant in Nanjing, China, PrimeBay has established itself as an international benchmark for heavy-duty industrial racking and satellite shuttle systems since 2006. Featuring fully continuous automatic cold-roll forming production lines, robotic welding stations, and automated electrostatic powder coating lines, PrimeBay delivers ultra-precise structural components engineered for zero-tolerance automated warehouses.
Technical Strengths: PrimeBay's Satellite Pallet Racking features proprietary high-strength Q355B cold-rolled steel profiles designed strictly to FEM 10.2.02 and EN 15512 European standards. Their 4th-generation smart shuttle shuttles utilize fast-charging LiFePO4 batteries capable of operating uninterrupted for 10+ hours in extreme sub-zero cold storage environments (-30°C). Supported by over 100 patents and ISO 9001 / CE / TUV certifications, PrimeBay supplies direct-from-factory solutions to distributors, integrators, and end-users in 85+ countries.
2. SSI Schaefer Group
Global Intralogistics GiantOverview: Headquartered in Germany, SSI Schaefer is one of the world's largest intralogistics technology providers. Their Orbiter shuttle system is famous for high reliability and deep WMS software integration in massive turn-key automated distribution centers across Europe and North America.
3. Jungheinrich AG
Forklift & Shuttle Systems PioneerOverview: Jungheinrich combines heavy forklift engineering with automated rack shuttle technology. Their Under Pallet Carrier (UPC) shuttle system integrates seamlessly with Jungheinrich narrow-aisle reach trucks, offering high operational safety for European logistics hubs.
4. Mecalux, S.A.
Western Market Infrastructure SupplierOverview: Spain-based Mecalux maintains extensive manufacturing capacity across Europe and the Americas. Their Pallet Shuttle system is widely utilized across North American and European food and beverage cold-chain storage facilities.
5. Interroll Group
Core Material Handling Component SpecialistOverview: Interroll focuses on modular flow channels, heavy-duty rollers, and motorized shuttle sub-systems supplied to OEM system integrators globally, known for robust mechanical precision.
6. Daifuku Co., Ltd.
High-End Automation IntegratorOverview: As a premier Japanese automation giant, Daifuku excels in multi-directional shuttle systems and ultra-high bay ASRS infrastructure used heavily in semiconductor, pharmaceutical, and high-speed cold storage applications.
7. Stow Group (Matterson)
Heavy Racking Engineering PowerhouseOverview: Stow Group is a leading European manufacturer of industrial racking systems. Their Atlas pallet shuttle system is engineered for continuous high-load applications across industrial production environments.
8. BITO-Lagertechnik Bittmann GmbH
Precision Small-Parts & Pallet RackingOverview: BITO specializes in high-density storage rack design, cold-formed structural uprights, and shuttle racking solutions engineered specifically for German industrial compliance standards.
9. Gonvarri Material Handling (Constructor/Dexion)
Pan-European Storage ManufacturerOverview: Operating brands such as Dexion and Constructor, Gonvarri offers vast experience in heavy steel fabrication, seismic-resistant racking frames, and semi-automated shuttle systems.
10. Nedcon B.V.
Custom Complex Structural RackingOverview: Part of the BrandSafway group, Netherlands-based Nedcon is renowned for bespoke structural steel design, heavy mezzanine platforms, and custom automated shuttle integration.
Future Procurement & Technology Trends in Satellite Racking
As global supply chains shift toward full digital connectivity and green energy standards, warehouse procurement officers must align equipment specifications with emerging automation paradigms.
1. Transition to 4-Way Shuttle Systems
While classic 2-Way shuttles travel back and forth in a single channel, 4-Way Pallet Shuttles can switch tracks autonomously across cross-aisles. This turns static racking into a fully dynamic 3D matrix without requiring expensive crane-based ASRS.
2. Ultra-Fast LiFePO4 & Supercapacitor Power
Traditional lead-acid shuttle batteries are obsolete. Next-generation satellite systems feature zero-maintenance Lithium Iron Phosphate (LiFePO4) battery packs with 1-hour fast charging and supercapacitors capable of continuous duty cycles down to -30°C cold storage.
3. IoT, WCS & 5G Fleet Management
Modern satellite systems embed Wi-Fi 6 or 5G IoT chips into shuttle carts. Warehouse managers can monitor real-time battery status, weight diagnostics, pallet location mapping, and predictive sensor maintenance from cloud dashboards or handheld WMS terminals.
Why Global Importers & Engineering Contractors Choose PrimeBay
PrimeBay Heavy Duty Racking Co., Ltd. combines European technical standards with direct-from-factory manufacturing efficiency, delivering tailored satellite racking solutions for projects worldwide.
Frequently Asked Questions (FAQ) for Racking Buyers
Expert technical answers to assist warehouse logistics managers, procurement directors, and system integrators during project evaluation.
Which structural certifications do PrimeBay racking systems carry?
Can PrimeBay design a satellite racking layout directly from my CAD building plan?
How do I decide between Drive-In, Push Back, and Satellite Radio Shuttle Racking?
What battery technology powers PrimeBay satellite shuttles in cold storage?
What OEM & ODM customization options are available for distributors and contractors?
What is the structural warranty and expected operating lifespan of the racking system?
Ready to Optimize Your Warehouse Capacity?
Contact PrimeBay's engineering team today for direct factory pricing, custom CAD layout designs, and complete technical specifications.
