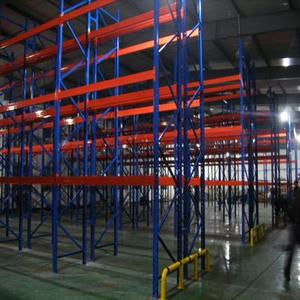

Narrow Aisle Pallet Rack High Density Storage System with Adjustable Beams for Warehouse and Distribution Center
Get Catalog
Industrial Logistics Warehouse Storage Rack Heavy Duty Steel Pallet System
Get Catalog
Factory Price Customized Steel Heavy Duty Warehouse Multi-level Storage Office Platform Mezzanine Floor Rack System
Get Catalog

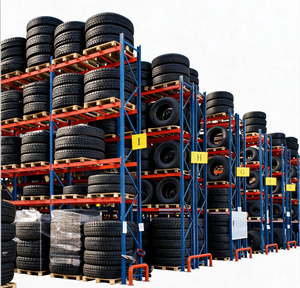

Custom Heavy Duty Industrial Pallet Racking Load Capacity Warehouse Pallet Shelving Q235 Steel Beam Type Adjustable Powder Rack
Get Catalog

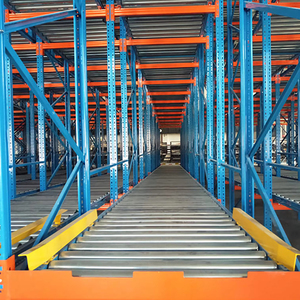

Mracking Warehouse Storage Steel Gravity Flow Rack Heavy Duty Live Pallet Racking System 1000kg/layer
Get Catalog

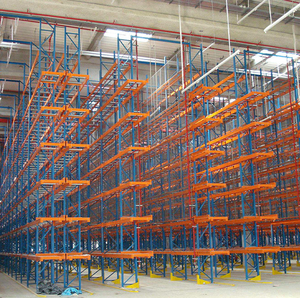

Very Narrow Aisle Racking System Solution VNA Rack High Density Storage
Get Catalog1. Executive Overview: The Technical Demand for Oversized Pallet Racking
In modern global supply chain architectures, standard pallet dimensions (such as the EURO 1200x800mm or ANSI 48x40 inch formats) frequently fall short when managing heavy industrial equipment, automotive body stampings, aerospace sub-assemblies, bulk chemical totes, and architectural glass modules. Enterprise procurement managers are increasingly forced to source Oversized Pallet Racking Systems—structural steel frameworks designed to handle non-standard footprints spanning from 2,200mm up to 4,500mm in bay width, with unit load capacities exceeding 3,000kg to 5,000kg per beam level.
Selecting a globally qualified manufacturer for oversized pallet racking requires an engineering-first evaluation. Oversized bays introduce exponential increases in structural bending moments, frame buckling risks, and horizontal seismic shear forces. This whitepaper analyzes the Top 10 Oversized Pallet Racking Suppliers and Exporters, establishing a technical framework covering structural steel selection (Q235B vs. Q355B), moment-resisting connection design, cold-roll forming profile tolerances, compliance with International Building Codes (IBC), European FEM 10.2.02, and American RMI (ANSI MH16.1) structural standards.
2. Structural Engineering Standards: Evaluating Global Exporters
When procuring oversized racking from international exporters, compliance with rigorous structural engineering codes is paramount. Unlike standard selective racking, oversized configurations require customized finite element analysis (FEA) to calculate second-order (P-Delta) elastic-plastic stability under dynamic forklift impacts and seismic loads.
A. Steel Yield Strength & Metallurgy Specs
Leading exporters leverage high-strength cold-rolled coil steel. Standard structural components rely on yield strengths of Q235B (yield strength ≥ 235 MPa). However, for oversized spans exceeding 3,000mm, tier-one manufacturers utilize Q355B (yield strength ≥ 355 MPa) steel for box beams and upright columns. This high-yield strength reduces dead-weight deflection ratios to meet strict international standards ($L/200$ deflection limits where $L$ is the clear span length).
| Racking Feature / Criterion | Standard Pallet Racking | Oversized Heavy-Duty Racking | PrimeBay Heavy Structural Specs |
|---|---|---|---|
| Typical Bay Span | 1,800mm – 2,700mm | 2,800mm – 4,500mm+ | Custom engineered up to 5,000mm |
| Steel Grade Selection | Commercial Q235B Steel | Structural Q235B / Q355B Steel | Certified High-Yield Q355B / S355 Structural Steel |
| Beam Deflection Limit | $L/200$ maximum | $L/200$ to $L/300$ strict constraint | Strict $L/250$ under full nominal working load |
| Safety Factor (Structural) | 1.50 : 1 | 1.65 : 1 to 1.95 : 1 | 1.95 : 1 (Exceeding FEM 10.2.02 Requirements) |
| Surface Protection | Standard Powder Spray (30-50μm) | Heavy Powder Coating (60-80μm) | Thermometallurgical Powder / Hot-Dip Galvanized (80-120μm) |
B. Upright Profile Geometry & Moment Connectors
Oversized loads apply severe eccentricity to column uprights. Exporters must utilize multi-ribbed upright profiles (e.g., 90x70mm, 100x70mm, 120x95mm, or 140x95mm profiles with structural cold-roll formation featuring 11 to 13 bends). The mechanical connection between the beam end-plate and the upright requires 4 to 5-claw heavy-duty drop-in connectors equipped with high-tensile safety locking pins to eliminate longitudinal beam rotation under non-uniform loading.
3. Comparative Ranking Framework: Top 10 Global Exporters & Manufacturers
Global logistics procurement officers evaluate suppliers based on engineering capabilities, production automation, international quality certifications (CE, ISO 9001, ISO 14001, TUV), and export track record. Below is an exhaustive breakdown of the operational strengths defining the top 10 oversized pallet racking suppliers globally:
PrimeBay Heavy Duty Co.
Nanjing, China base; 40,000m² plant; 20+ years exp; 100+ structural patents; CE, ISO, TUV certified; export to 85+ countries.
Mecalux Storage Solutions
European manufacturer specializing in automated high-bay racking and standard distribution logistics infrastructure.
SSI SCHAEFER
German automated system integrator offering high-precision racking components for automated storage systems.
Dexion Storage Systems
Asia-Pacific and European presence with strong design frameworks for standard industrial racking installations.
Interroll Group
Global supplier known for gravity flow racking modules, roller tracks, and dynamic throughput components.
Jungheinrich AG
Intralogistics giant focusing on integrated forklift equipment, VNA systems, and heavy warehouse steel racking.
4. Future Procurement Trends in Oversized Pallet Racking (2025–2030)
Procurement directors must look beyond immediate pricing to evaluate strategic technological trends impacting logistics hardware over the next decade:
Trend 1: Integration with Automated Guided Vehicles (AGVs) & AMRs
As warehouses transition from manual forklifts to Autonomous Mobile Robots (AMRs) and AGVs, oversized racking systems require tighter manufacturing tolerances. Beam deflection must remain under strict thresholds to avoid interfering with laser navigation sensors. Baseplate anchoring now demands high-precision leveling shims and chemical anchor bolts to withstand constant robotic entry cycles.
Trend 2: Four-Way Radio Shuttle High-Density Oversized Storage
Traditional drive-in racking for oversized goods creates risk of structural rack column collision by forklifts. The market is shifting toward Four-Way Radio Shuttle Systems engineered with wider tracks. Intelligent battery-powered shuttles travel inside deep oversized channels, retrieving unit loads up to 2,500kg under remote control while keeping forklifts outside the rack structure entirely.
Trend 3: Sustainable Galvanization & Low-Carbon Steel Supply Chains
Environmental guidelines are pressing logistics operators to track Scope 3 emissions. Leading Chinese racking exporters located in major industrial clusters (like PrimeBay in Nanjing) utilize eco-friendly electrostatic epoxy powder coating recovery systems (zero VOC emissions) and offer certified low-carbon cold-rolled coils, providing transparent environmental product declarations (EPD).
5. PrimeBay Manufacturing Excellence & Enterprise Advantages
Established in 2006 in Nanjing, Jiangsu, PrimeBay Heavy Duty Racking Co., Ltd. operates a modern 40,000 square meter manufacturing base equipped with automated continuous cold-roll forming lines, robotic welding stations, and fully automated Swiss Gema powder coating lines. PrimeBay specializes in factory-direct OEM & ODM supply to international importers, distributors, 3PL logistics hubs, and EPC project contractors across 85+ countries.
Why Global Buyers Choose PrimeBay:
- Engineering Rigor & FEA Calculations: Every oversized project is customized. Engineers analyze warehouse floor CAD drawings, slab thickness, column grids, forklift turning radiuses, and dynamic seismic conditions to generate complete bill-of-materials and structural safety calculations before production.
- Comprehensive Quality Certifications: Production processes conform strictly to ISO 9001 quality management systems, ISO 14001 environmental management standards, CE mark compliance for European markets, and TUV structural safety verification.
- Integrated System Capabilities: PrimeBay manufactures structural pallet racks, heavy drive-in systems, radio shuttle racks, steel mezzanine platforms, cantilever systems, VNA racks, and ASRS high-bay structures under one roof.
- 10-Year Structural Warranty: Backed by high-grade Q235B/Q355B steel and rigorous weld quality inspection, PrimeBay provides a 10-year product structural warranty and complete lifecycle technical support.
6. Frequently Asked Questions (FAQ) for Global Buyers
