Featured Automated Pallet Shuttle & Warehouse Equipment Systems
Explore factory-direct OEM & ODM storage solutions engineered for heavy-duty material handling, cold storage, and high-density warehouse automation.
1. Executive Technical Overview: Automated Pallet Shuttle Systems

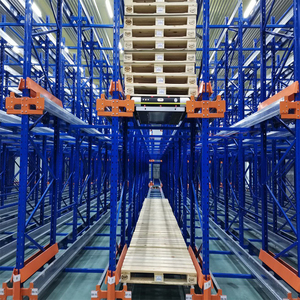

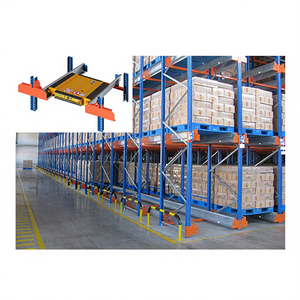

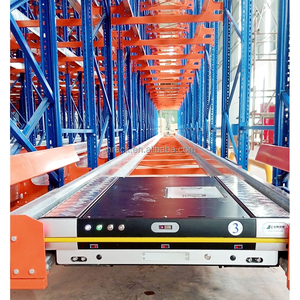

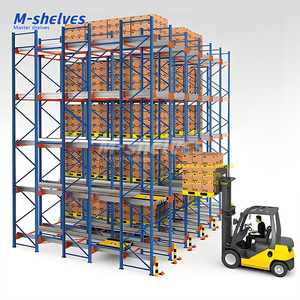

Modern intralogistics demands maximum spatial efficiency, rapid throughput, and operational resilience. An Automated Pallet Shuttle System—frequently categorized as a radio shuttle or automated pallet runner—represents a semi-automated or fully automated high-density storage matrix. By using self-powered robotic carriages to transport palletized loads along specialized rails embedded in dynamic storage racks, this technology eliminates the requirement for forklifts to enter structural storage channels, mitigating equipment collisions and dramatically increasing pallet density.

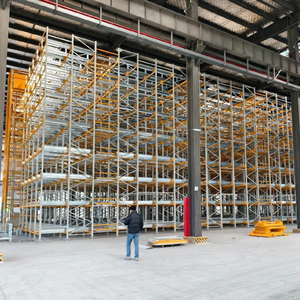

Global supply chain managers, 3PL logistics operators, and cold storage procurement officers rely on direct OEM/ODM factory partnerships to customize pallet shuttle architectures. Systems are designed in two principal cinematic configurations: 2-Way Radio Shuttle Systems (optimized for high-volume LIFO/FIFO linear lanes) and 4-Way Multi-Directional Shuttle Systems (capable of longitudinal and transverse lane switches for fully autonomous ASRS integration).
Engineering Comparison: 2-Way vs. 4-Way Automated Pallet Shuttle Systems
| Kinematic Parameter | 2-Way Radio Pallet Shuttle | 4-Way Multi-Directional Autonomous Shuttle |
|---|---|---|
| Primary Motion Axis | Single-axis (Forward & Reverse along lane depth) | Dual-axis (Forward/Reverse + Right/Left transverse changing) |
| Level Vertical Transfer | Manual forklift repositioning across rack levels | Integrated vertical reciprocating lifts (Lifters / Hoists) |
| Maximum Payload Capacity | 500 kg – 2,000 kg (Up to 4,400 lbs) | 1,000 kg – 1,500 kg standard heavy-duty structural loading |
| Operating Temperature | -30°C to +45°C (Specialized Cold Storage LiFePO4 cells) | -25°C to +40°C (Low-temp sensor encapsulation) |
| Travel Velocity (Unloaded / Loaded) | 1.2 m/s (Unloaded) / 0.8 m/s (Loaded) | 1.5 m/s (Unloaded) / 1.0 m/s (Loaded) |
| WMS / WCS Connectivity | RF Remote Controller / Handheld Tablet / Modbus TCP | Automated Fleet Control (WCS/WMS API via 5G/Wi-Fi 6 Mesh) |
2. OEM/ODM Customization Capabilities & Manufacturing Rigor
Contracting with an enterprise-grade OEM/ODM automated pallet shuttle factory like PrimeBay Heavy Duty Racking Co., Ltd. provides distinct technical advantages. Generic, off-the-shelf racking components often fail under heavy industrial operational stresses, asymmetric building floor slabs, or rigorous environmental compliance audits. Factory-direct engineering ensures every beam profile, upright section, and electronic shuttle module is built precisely to project specifications.
Metallurgical & Structural Engineering
Fabricated from high-tensile strength Q355B structural steel, our cold-rolled upright profiles and shuttle guide rails feature precise geometrical tolerances. Electrostatic epoxy powder coating (80–100μm thickness) ensures superior corrosion resistance even in high-humidity or cold-chain environments.
Power Systems & LiFePO4 Battery Tech
Equipped with thermal-managed Lithium Iron Phosphate (LiFePO4) battery packs, our automated shuttles deliver continuous 8 to 10-hour duty cycles. Fast inductive charging or sliding contact line power allows 24/7 continuous operation without human intervention.
Multi-Level Safety & Sensor Arrays
Safety is integrated at the circuit level. Features dual photoelectric position sensors, laser rangefinders (LiDAR), anti-collision infrared bumpers, mechanical end-stops, and emergency fail-safe braking mechanisms compliant with European CE and FEM standards.
Whether you require private-label branding, customized upright colors (RAL scale), custom pallet entry guides, or specific PLC controller architectures (Siemens, Schneider, or Mitsubishi), our 40,000 m² production base offers full OEM/ODM agility for international distributors and system integrators.
3. Strategic Procurement Trends in Automated Warehousing (2025–2030)
The global automated material handling market is undergoing a structural paradigm shift driven by labor shortages, skyrocketing industrial real estate costs, and e-commerce fulfillment speed demands. Procurement directors evaluating automated pallet shuttle systems must align their capital expenditure (CapEx) strategies with several key macro trends:
- Shift from Semi-Automated to Fully Autonomous ASRS: While 2-way radio shuttles controlled via handheld RF remotes remain popular for bulk storage, enterprise buyers are rapidly transitioning toward 4-way shuttle systems integrated with automated vertical lifts and Warehouse Control Software (WCS).
- Cold Chain Optimization & Sustainable Energy: Energy costs in refrigerated warehousing (-20°C to -30°C) represent up to 60% of operational overhead. Shuttle racking increases cube utilization by up to 85% compared to standard selective racking, reducing the cooled space requirement per pallet and delivering massive energy efficiency.
- Standardization of IoT and Edge Fleet Management: Modern procurement guidelines require shuttle controllers to transmit real-time telemetry—including battery state-of-charge (SoC), operational cycle counts, vibration anomalies, and motor temperatures—directly to cloud dashboard platforms via MQTT/OPC-UA protocols.
- Modular Scalability: Sourcing decision-makers prioritize modular OEM systems that permit incremental capacity additions. Facilities can install the steel shuttle racking matrix during initial construction and scale the fleet of robotic shuttles as throughput demand accelerates.
4. Advanced Technology Evolution & Smart Intralogistics
The convergence of robotics, machine vision, and intelligent material handling has elevated the functional baseline of automated pallet runners. OEM factories now engineer intelligent shuttles that act as active node points within smart factories.
WMS / WCS API Connectivity
Seamless bidirectional data exchange with Tier-1 WMS software (SAP, Manhattan, Oracle) enables dynamic dynamic inventory allocation, automated lot control, strict FIFO/LIFO execution, and real-time SKU tracking without human error.
Pallet Distortion & Overhang Detection
Embedded optical sensor arrays verify pallet integrity before lifting. Damaged wooden pallets, misplaced stretch wrap, or dimensional overhangs are flagged immediately, preventing shuttle jams inside deep storage channels.
Dynamic Energy Recovery Systems
Advanced brushless DC motors incorporate regenerative braking circuits that capture dynamic kinetic energy during deceleration, routing power back into the battery to extend shift run-times by 12–15%.
5. Industrial Sourcing & Engineering FAQ
Essential technical answers for warehouse architects, procurement managers, and logistics contractors.
What warehouse floor slab tolerances are required for automated shuttle racking systems?
How do PrimeBay OEM automated shuttles perform in extreme cold storage environments?
What certifications and compliance standards do your manufacturing facilities maintain?
Can an existing Drive-In or Selective Racking facility retrofitted into a Shuttle Racking System?
What is the typical Return on Investment (ROI) cycle for an automated pallet shuttle installation?
6. Why Partner with PrimeBay Heavy Duty Racking Co., Ltd.?
With over two decades of dedicated manufacturing experience in Nanjing, China, PrimeBay stands as a premier global OEM/ODM manufacturer of automated pallet shuttles, heavy-duty racking, mezzanine platforms, and integrated intralogistics hardware.
Direct Factory Pricing
By eliminating middleman markups and manufacturing 100% of steel profiles, beams, and electronic shuttles in-house, we deliver superior factory-direct margins for global distributors and project developers.
Turnkey Engineering & CAD Layout
Our team of 300+ skilled personnel and experienced structural engineers provides complete project support: from initial building CAD analysis and load calculations to custom BOM generation and installation guidance.
10-Year Structural Warranty
Every racking system we deliver undergoes rigorous raw material testing and quality control inspections, backed by an industry-leading 10-year structural warranty for ultimate operational peace of mind.
Ready to Optimize Your Warehouse Capacity?
Send us your warehouse CAD drawing, pallet dimensions, and throughput requirements. Our engineering team will deliver a comprehensive project proposal within 24 hours.
