Technical Whitepaper: Mechanical Architecture & Dynamics of Two-Way Radio Shuttle Racking

In modern industrial logistics, maximizing volumetric cube utilization while controlling capital expenditure and operational downtime is a primary operational objective. As a premier **China wholesale two way shuttle racking system factory & supplier**, PrimeBay Heavy Duty Racking Co., Ltd. provides engineered semi-automated high-density storage solutions designed to bridge the gap between manual selective pallet racking and fully automated crane-based ASRS installations.

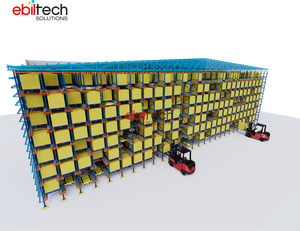

A **Two-Way Radio Shuttle Racking System** consists of dynamic deep-lane storage channels fitted with continuous support rails, structured cold-rolled steel frames, and self-propelled, battery-powered shuttle vehicles. Controlled via RF remote commands or integrated Warehouse Control Systems (WCS), the shuttle carries unit loads (pallets up to 1,500 kg) forward and backward along dedicated channels, eliminating the need for forklifts to enter the deep storage lanes.

Structural Steel Selection & Cold-Roll Forming Mechanics

The structural integrity of a high-bay shuttle system depends heavily on material selection and profile engineering. PrimeBay utilizes high-tensile Q235B and Q355B structural steel profiles, cold-roll formed in continuous multi-stage rolling mills to guarantee dimensional consistency across long structural spans.

• Upright Columns: Formed with an 11-fold micro-bending cross-section profile to distribute axial compressive forces evenly, certified to withstand vertical static loads exceeding 20 Metric Tons per bay.
• Guide & Transport Rails: Custom-engineered galvanized steel rails engineered with dual-function geometry: a top rolling surface optimized for low rolling resistance polyurethane wheels, and an integrated lower lip for anti-tipping safety catches.
• Beams & Bracing: Robotic MIG welded connector hooks with multi-claw engage geometry, ensuring rigid moment connections and high lateral resistance under seismic load conditions (compliant with EN 15512 and FEM 10.2.02 standards).

Future Procurement & Technological Trends in Shuttle Racking (2025–2030)

As global supply chains face rising industrial real estate costs and escalating labor expenses, procurement strategies for high-density storage are undergoing rapid evolution. Key technology trends shaping the market include:

1. Migration from 2D Radio Shuttles to 4-Way Multi-Shuttle Architecture

While traditional 2-way shuttle systems excel at high-volume, low-SKU deep lane storage (e.g., raw material buffer zones, cold storage beverage logistics), enterprise logistics planners are increasingly evaluating hybrid paths. 2-way shuttles remain the most cost-efficient choice per pallet position; however, modular designs now allow upgrading rail infrastructures to accept 4-Way Shuttle carts as throughput demands increase.

2. Cold-Chain Efficiency & Next-Gen LiFePO4 Energy Management

Energy consumption inside sub-zero environments (-25°C to -30°C) represents a major operating expenditure. Modern 2-way shuttle vehicles utilize advanced Lithium Iron Phosphate (LiFePO4) battery cells equipped with automated internal thermal management and pulse supercapacitors. These advancements enable continuous 8-to-10 hour shifts inside cold rooms with rapid 1-hour inductive or plug-in recharging.

3. WMS/WCS Integration via Industrial IoT (IIoT)

Procurement teams are shifting away from standalone hand-held remote controls toward automated shuttles fitted with Wi-Fi/Zigbee communication modules. Real-time telemetry allows Centralized Warehouse Management Systems (WMS) to direct shuttle task allocation, track battery degradation status, perform predictive maintenance diagnostics, and execute automated stock rotation (FIFO/LIFO) without human intervention.
