Strategic Engineering of Double Deep Pallet Racking Systems
Balancing Floor Space Efficiency, Reach Truck Mechanics, and Structural Safety in Modern High-Bay Warehousing
Engineered Product Catalog
Factory-Direct Double Deep & Heavy-Duty Racking Systems
Explore our certified structural storage configurations designed for high-density logistics centers, cold chain operations, and heavy industrial distribution.
Double Deep Pallet Rack System for Reach Truck High Density Storage Solution for Warehouse
High-Density Heavy Duty Steel Pallet Rack Durable FIFO Drive-in Warehouse Storage ODM & OEM Supplier
Customized Heavy Duty Industrial Storage Shelves System Metal Rack Stacking Units Warehouse Steel Industrial Pallet Racking
Logistics Center Pallet Rack Warehouse Rack Manufacturer Q235B Steel Heavy Duty Storage Rack Custom Design ISO Certified System
Factory Outlet Industrial Heavy-Duty Multi-Level Pallet Racking System Steel Metal Warehouse Rack with High Storage Capacity

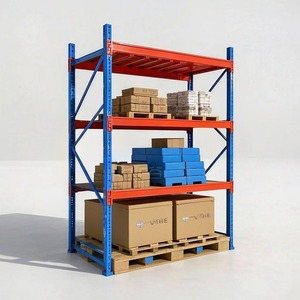

Factory Direct Custom Heavy-Duty Pallet Shelving Green Safe Storage Racks Industrial Free Adjustment Height for Warehouse

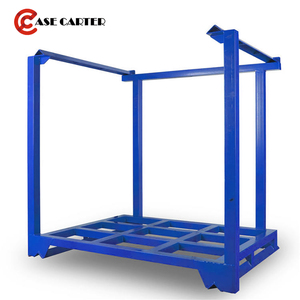

CASE CARTER OEM Powder Coating Heavy Duty Foldable Portable Stacking Steel Tire Storage Rack Palletainer
+50%
Storage Capacity vs. Selective
40-60%
Pallet SKU Direct Selectivity
Q355B
High-Tensile Cold Rolled Steel
10-Year
Structural Integrity Warranty
Mechanical Architecture & Working Principle
Double Deep Pallet Racking is a specialized derivative of standard selective pallet racking, designed to store pallets two-deep in a back-to-back configuration. By eliminating every second access aisle required in traditional selective setups, Double Deep systems achieve up to a 50% increase in cubic storage density within identical warehouse footprints.
Operational access requires specialized material handling equipment—specifically deep-reach forklifts equipped with pantograph mechanisms or telescopic fork attachments. While direct selectivity decreases to 50% (requiring Last-In, First-Out or dynamic LIFO stock rotation per bay), it offers an ideal compromise between ultra-high-density storage (like Drive-In or Shuttle systems) and total selectivity.
Ideal Operational Applications
Engineered for high-volume warehousing where multiple pallets share identical Stock Keeping Units (SKUs), Double Deep racking significantly lowers cost-per-pallet-stored while optimizing cold storage refrigeration efficiency.
- Cold Chain & Refrigerated Logistics: Maximizes thermal efficiency by compressing storage volume in expensive sub-zero environments.
- Fast-Moving Consumer Goods (FMCG): Excellent for food, beverage, and consumer packaged goods with batch-based production cycles.
- Dry Goods & Raw Material Manufacturing: Ideal for storing staging materials where multiple pallets of identical components are consumed sequentially.
- 3PL Warehousing: Offers flexible high-density storage for multi-pallet consignments per customer.
Quantitative Decision Matrix
Warehouse Storage System Trade-off Benchmark
Comparing Double Deep Pallet Racking against leading heavy-duty industrial storage methodologies.
| Storage Methodology | Cubic Footprint Density | Direct SKU Access | Stock Handling Protocol | Forklift Capital Cost | Relative Cost/Pallet |
|---|---|---|---|---|---|
| Selective Pallet Racking | Baseline (100%) | 100% Immediate | FIFO / LIFO Dynamic | Standard Reach / Counterbalance | Standard |
| Double Deep Pallet Racking | +40% to +50% | 50% Direct | LIFO (Per Deep Lane) | Pantograph / Deep Reach Truck | Lowest Total TCO |
| Drive-In Racking | +65% to +75% | 15% - 20% | Strict LIFO Block Storage | Standard Counterbalance | Moderate Steel Mass |
| Radio Shuttle Racking | +80% to +85% | Per Channel | Automated FIFO / LIFO | Standard Forklift + Automated Shuttle | Higher Initial Capex |
| Push-Back Racking | +55% to +65% | Per Lane (2-6 Deep) | Gravity LIFO | Standard Reach Truck | High Mechanical Cost |
Metallurgical & Mechanical Rigor
Structural Engineering & Material Specifications
Precision manufacturing using high-grade cold-rolled steel profiles engineered to exceed global structural safety standards.
High-Tensile Steel Quality (Q235B vs. Q355B)
PrimeBay racking components utilize continuous cold-roll formed structural steel. We select certified steel grades based on load analysis:
- Q235B (Equivalent to S235JR / ASTM A36): Yield strength ≥ 235 MPa. Standard for light-to-medium heavy-duty beam loads up to 3,000 kg per level.
- Q355B (Equivalent to S355JR / ASTM A572 Gr 50): Yield strength ≥ 355 MPa. Superior strength-to-weight ratio for deep reach upright frames exceeding 10 meters in height or seismic zones.
Upright Geometry & Beam Section Analysis
Structural stiffness under eccentric pantograph loads is guaranteed through optimized cross-sectional profiles:
- Omega Upright Column Profiles: Available in 90x70mm, 100x70mm, 120x95mm, and 140x95mm profile widths with thicknesses from 1.8mm to 3.0mm. Features 11 to 13 structural bends for enhanced flexural rigidity.
- Interlocking Box Beams: Fabricated from two C-sections cold-formed together. Common beam profiles range from 80x50mm to 160x50mm with heavy-duty 3 to 5-hook structural connectors.
International Engineering Compliance
Our designs undergo full Finite Element Analysis (FEA) and physical strain testing, ensuring strict compliance with global structural safety codes:
- FEM 10.2.02 / EN 15512: European design standards for adjustable beam pallet racking systems.
- RMI (ANSI MH16.1): Specification for the design, testing, and utilization of industrial steel storage racks.
- AS 4084-2012: Australian Standard for Steel Storage Racking.
- ISO 9001 & CE Certification: Audited factory quality management and structural safety compliance.
Strategic Procurement Trends
Future Industry Trends in Double Deep Racking Sourcing (2025–2030)
Key technological advancements reshaping wholesale warehouse equipment procurement from China manufacturers.
1. Integration with Autonomous Deep-Reach AGVs
The traditional limitation of Double Deep racking—reliance on highly skilled reach truck operators—is rapidly dissipating. Wholesale buyers are increasingly specifying racking tolerances compatible with Autonomous Guided Vehicles (AGVs) and Autonomous Mobile Robots (AMRs) equipped with telescopic 3D vision forks. Manufacturing tolerances must be tightened to ±1.0mm per bay to ensure seamless robotic positioning.
2. Eco-Friendly Electrostatic Coating & Low-Carbon Steel
Global logistics operators are enforcing strict ESG (Environmental, Social, and Governance) purchasing guidelines. Modern Chinese racking factories have transitioned to non-toxic, heavy-metal-free thermosetting epoxy-polyester powder coatings processed with fully automated Swiss Gema spray systems. Zero-VOC output and recyclability are now standard RFQ requirements.
3. Real-Time IoT Structural Health Monitoring
Next-generation Double Deep installations are incorporating smart strain-gauge sensors embedded directly into lower upright columns and heavy-impact row protectors. These sensors broadcast real-time structural telemetry, alerting facility managers instantly to forklift impact damage, overload deflection thresholds, or seismic displacement.
4. Supply Chain Consolidation & Direct OEM Engineering
International buyers are moving away from local intermediary distributors in favor of direct manufacturer engagement. By working directly with integrated Chinese manufacturing hubs, overseas buyers secure tailored roll-forming custom sizes, pre-punched structural profiles, custom powder-coat corporate colors, and significant unit-cost savings.
Why Source From PrimeBay Heavy Duty Racking?
Founded in 2006 in Nanjing, Jiangsu, China, PrimeBay operates a state-of-the-art 40,000 square meter automated manufacturing complex dedicated exclusively to heavy-duty industrial storage systems.
We provide full-spectrum engineering, structural calculation, CAD layout design, and continuous roll-forming production for clients in over 85 countries worldwide.
- 20+ Years Manufacturing Excellence: Proven track record over 2,000 global logistics projects.
- Certified Quality System: Fully certified under ISO 9001, ISO 14001, CE, and TUV protocols.
- End-to-End In-House Production: Automated continuous cold-roll forming, robotic laser welding, and automated powder coating lines.
- 100+ Patents & OEM/ODM Service: Full structural customization according to your pallet load specs and building dimensions.
40,000m²
Production Floor Area
300+
Skilled Engineers & Staff
85+
Global Export Countries
10-Year
Structural Warranty
Buyer Knowledge Base
Frequently Asked Questions (FAQ) for Double Deep Procurement
Technical guidance for logistics managers, structural engineers, and international wholesale procurement officers.
1. What forklift modifications are mandatory for Double Deep Racking systems?
Double Deep racking requires specialized deep-reach trucks equipped with a pantograph extension or hydraulic telescopic forks. Standard reach trucks cannot access the second pallet depth. Additionally, due to the increased load center distance when extended into the rear rack, forklift load capacities decrease substantially. A camera system mounted on the fork carriage and a laser height selector are strongly recommended for operating at heights above 6 meters.
2. How do you calculate the optimal aisle width for a Double Deep installation?
Aisle width depends on the turning radius of the specific pantograph reach truck model selected. Typically, aisle width requirements range between 3.0 meters and 3.4 meters for standard 1200x1000mm pallets. Our engineering team calculates exact aisle clearances based on your forklift manufacturer's AST (Right Angle Stacking Aisle) data sheet plus a minimum 200mm safety buffer.
3. What is the typical beam deflection limit permitted under FEM / RMI standards?
According to international specifications (FEM 10.2.02 and RMI standards), maximum allowable beam deflection under full rated static load must not exceed L/200, where L is the clear span length of the beam. For example, on a standard 2700mm beam, maximum vertical deflection at mid-span must remain under 13.5mm.
4. Can existing selective racking systems be retrofitted into Double Deep racking?
Yes. Selective racking can often be reconfigured into a Double Deep layout by joining adjacent upright frames back-to-back using specialized heavy-duty frame ties (typically 200mm to 300mm length). However, upright frame depth, steel gauge, and floor slab anchor bolt specs must be re-engineered to handle the unique eccentric loading forces applied by deep reach trucks.
5. What floor slab thickness and concrete strength are required for heavy-duty Double Deep racking?
For upright heights up to 10 meters carrying loads up to 4,000 kg per bay level, a reinforced concrete slab with a minimum thickness of 180mm to 250mm and a compressive strength of C25/C30 (25-30 MPa) is recommended. The floor slab must be capable of resisting anchor bolt pull-out forces and localized point loads generated by column baseplates.
6. What certifications do PrimeBay racking systems carry for international import compliance?
All PrimeBay racking products are manufactured under strict ISO 9001 (Quality Management) and ISO 14001 (Environmental Management) standards. Our structural designs hold official CE certification and TUV Rheinland compliance test reports, allowing seamless importation into Europe, North America, Australia, the Middle East, and Latin America.
7. How does Double Deep racking perform in Cold Storage environments?
Double Deep racking is exceptionally effective in cold storage and blast freezing facilities. By reducing aisle space by up to 50%, cold room building volume is compact, directly cutting electricity cooling expenses. We supply specialized low-temperature powder coatings and cold-ductile steel grades designed to resist embrittlement down to -30°C.
8. What OEM and customization services does your factory provide?
We provide complete OEM/ODM manufacturing. We customize upright pitch (50mm, 75mm, 76.2mm teardrop), steel profile thicknesses (1.8mm to 3.0mm), box beam dimensions, customized brand logos on steel components, specialized packaging for export containers, and custom RAL powder coating color matching.
9. What is the standard lead time for a wholesale container order from your China factory?
Standard manufacturing lead times for 40ft High Cube container orders range between 14 and 21 days from approval of engineering CAD drawings. For large-scale projects exceeding 500 tons, rolling production schedules are coordinated to provide staggered container deliveries according to your installation timeline.
10. How are structural racking safety inspections conducted after installation?
We supply comprehensive installation manuals, CAD alignment drawings, and load rating signage plaques with every shipment. Inspections should follow EN 15635 guidelines: weekly visual checks for column impact damage, monthly connection pin verification, and annual structural audits by a certified racking safety inspector.
Optimize Your Warehouse Storage Capacity Today
Send your warehouse floor CAD layout, ceiling height, and pallet specification to our structural engineering team. We will return a free technical layout design, load calculation, and factory-direct quotation within 24 hours.
