Executive Summary: The Technological Paradigm Shift in Pallet Automation
Global logistics and supply chain infrastructures are undergoing an unprecedented transition from traditional manual storage to fully automated, highly intelligent robotic pallet storage systems. As real estate costs expand across major distribution hubs in North America, Europe, and Asia-Pacific, industrial operators are tasked with maximizing vertical cubic storage density while suppressing operational expenditures (OpEx). China has emerged as the premier manufacturing powerhouse for automated pallet racking systems, offering world-class metallurgy, structural precision, and advanced robotic integration capabilities.
Modern warehouse engineering dictates that structural racking must no longer be considered a static, passive steel frame. In modern high-bay distribution centers, the racking system functions as an integrated structural skeleton supporting high-speed 4-way radio shuttles, autonomous mobile robots (AMRs), automated guided vehicles (AGVs), and stacker cranes operating within Automated Storage and Retrieval Systems (ASRS). Chinese manufacturing leaders such as PrimeBay Heavy Duty Racking Co., Ltd. bring over two decades of metallurgical research, cold-roll forming innovations, and certified compliance (CE, ISO 9001, ISO 14001, TUV) to guarantee structural safety under extreme load dynamic stresses.
When evaluating top China robotic pallet storage system factories and suppliers, enterprise procurement teams must analyze structural load-bearing parameters, material tensile grades (Q235B vs. Q355B structural steel), seismic resilience modeling (RMI/ANSI MH16.1 & FEM 10.2.02 standards), and sub-zero operational endurance. This whitepaper establishes a definitive guide for supply chain executives, system integrators, and industrial engineers seeking to partner with Tier-1 Chinese manufacturers.
Future Sourcing & Procurement Trends in Robotic Pallet Storage (2025–2030)
To maintain competitive advantages, industrial buyers must align their infrastructure investments with next-generation automated warehousing trends. Below are the key engineering breakthroughs defining the future of robotic pallet handling:
1. Hyper-Density 4-Way Radio Shuttle Infrastructure
Unlike traditional 2-way radio shuttles restricted to single-lane longitudinal travel, 4-way robotic shuttles maneuver cross-aisle vectors seamlessly. This eliminates fixed aisle constraints, enabling up to 90% floor footprint utilization. Procurement is rapidly shifting toward 4-way systems due to their dynamic fleet scalability.
2. Sub-Zero Cold Chain & Harsh Environment Resilience
Rapid growth in cold-chain food logistics and pharmaceutical cold storage requires robotic shuttle systems capable of operating continuously at temperatures down to -30°C (-22°F). Advanced ultra-low temperature lithium iron phosphate (LiFePO4) battery modules combined with specialized structural anti-condensation steel coatings are mandatory specs.
3. IoT Smart Diagnostics & Structural Health Sensors
Modern robotic racking incorporates strain gauges, deflection sensors, and vibration monitors directly into upright profiles and load beams. Connected to Warehouse Control Systems (WCS), these sensors detect accidental forklift impacts, micro-structural stress fatigue, or uneven floor settlement in real time, preventing catastrophic failures.
Robotic & High-Density Storage Technical Comparison Matrix
Selecting the correct warehouse storage architecture requires balancing capital expenditure (CapEx), footprint density, throughput velocity, and SKU diversity. The table below illustrates the mechanical and performance metrics across modern racking structures engineered by leading Chinese suppliers:
| Storage Architecture | Volumetric Density | Direct SKU Selectivity | Handling Technology | Throughput Speed | Optimal Industry Application |
|---|---|---|---|---|---|

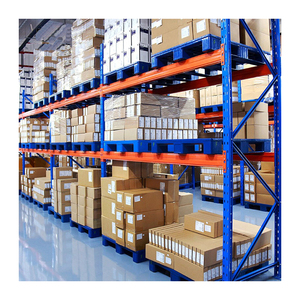

| Selective Pallet Racking | Standard (40–50%) | 100% Direct Access | Counterbalance / Reach Truck | Moderate | High-SKU 3PL, FMCG distribution, retail hubs |
| Double Deep Racking | Medium (55–65%) | 50% Immediate Access | Deep Reach Truck | Moderate | Medium-SKU, dry grocery, batch manufacturing |
| Drive-In / Drive-Through | High (70–75%) | Low (Lane Restricted) | Standard Forklift (Enters Rack) | Slow–Moderate | Low-SKU bulk seasonal storage, cold stores |
| 2-Way Radio Shuttle System | Very High (80–85%) | Per Lane (LIFO / FIFO) | Semi-Automated Radio Shuttle | High | Food & Beverage, cold storage, beverage bottlenecking |
| 4-Way Automated Shuttle (ASRS) | Maximum (85–92%) | Full Dynamic Matrix Access | Fully Robotic 4-Way Shuttle + Lift | Very High | E-commerce fulfillment, automated cold chain, pharma |
| Mezzanine Supported Racking | Doubles/Triples Area | 100% Manual / Conveyors | Manual Order Pickers / AGVs | High Pick Rate | E-commerce bin picking, auto spare parts, garment staging |
PrimeBay Engineering & Factory Capabilities
As a premier Chinese manufacturer established in 2006, PrimeBay Heavy Duty Racking Co., Ltd. operates a state-of-the-art 40,000 square meter intelligent manufacturing facility in Nanjing, Jiangsu Province. Our corporate ethos revolves around two strict core tenets: Rigorous Structural Engineering Integrity and Uncompromising Quality Assurance.
Fully Integrated Production Lines
Equipped with automatic continuous cold-roll forming lines, high-precision laser tube cutting machines, automated robotic welding cells, and an eco-friendly automated electrostatic powder coating system capable of applying durable 80–100 micron protective finishes.
Global Quality Certifications
Fully certified to European CE standards, ISO 9001 (Quality Management Systems), ISO 14001 (Environmental Management), and TUV Rhineland certification. Systems engineered to conform with FEM 10.2.02, RMI, and AS4084-2012 specifications.
OEM & ODM Customisation Expertise
Tailored engineering services providing custom upright pitch geometry, specialized beam box sections, bespoke color matching (RAL palette), and white-label branding for international equipment distributors and EPC contractors across 85+ nations.
10-Year Structural Integrity Warranty
Every system engineered by PrimeBay undergoes Finite Element Analysis (FEA) testing to model static stress, dynamic impact load, and seismic moment forces, backed by a comprehensive 10-year factory structural warranty.
Frequently Asked Procurement & Engineering Questions (FAQ)
Key technical considerations faced by logistics directors, EPC system integrators, and industrial buyers when sourcing robotic pallet storage from China:
Ready to Optimize Your Warehouse Storage Footprint?
Partner directly with China's leading heavy-duty racking & robotic storage manufacturer. Contact PrimeBay's engineering team today for custom CAD layouts, load capacity calculations, and direct factory pricing.
