Which certifications do PrimeBay racking systems carry?

Our production and products are certified to CE, ISO 9001 (quality management), ISO 14001 (environmental management) and TUV. Certificate copies are available on our Certification page and can be supplied with your quotation documents.

Can you design racking to my warehouse drawing?

Yes. Send your warehouse CAD or a sketch with clear height, column grid, pallet size, unit load weight, forklift type and target throughput. Our engineers return a layout, load calculation and bill of materials for review before production.

Do you offer OEM and ODM racking?

Yes. We supply OEM and ODM pallet racking and storage systems, including custom colors, upright profiles, beam sizes, branding and packaging for distributors and project contractors.

What warranty comes with your racking?

Our racking systems are covered by a 10-year product warranty when installed and used according to the approved design and load signage.

How do I choose between drive-in, push back and radio shuttle racking?

Drive-in racking suits low-SKU, high-volume LIFO storage at the lowest cost per pallet. Push back racking stores 2 to 5 pallets deep per lane with faster LIFO access. Radio shuttle racking reaches the highest density with FIFO or LIFO operation and reduces forklift travel inside the rack, making it ideal for cold storage and food and beverage warehouses.

CE Certified Logistics Pallet Storage System Supplier & Exporters

High-Density Mechanical Racking Engineering, Structural EN 15512 Compliance, and Turnkey Logistics Warehouse Solutions for Global Supply Chains

Heavy-Duty Logistics Pallet Racking Systems

Explore our structural steel pallet storage products certified to international safety norms (CE, ISO 9001, ISO 14001, TUV). Built from cold-rolled Q235B/Q355B structural steel, engineered for extreme mechanical reliability.

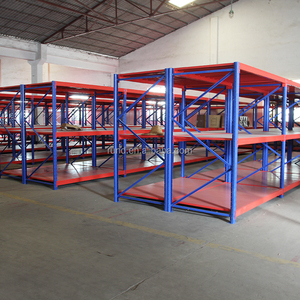

Heavy Duty 5-Layer Selective Pallet Rack 1500-4500kgs/level Warehouse Storage System Steel Iron Stacking Racks Shelves Carton

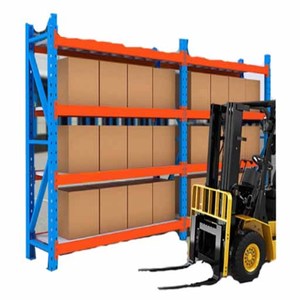

Selective Heavy Duty Pallet Rack 4000kg Capacity Industrial Warehouse Steel Storage System Rack Pallet Shelving Solution

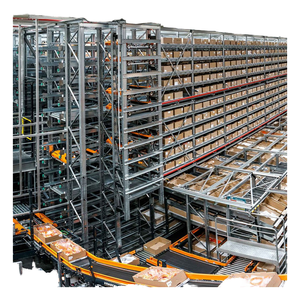

Automated Storage and Retrieval System ASRS

Automated Storage and Retrieval System Warehouse Bins Storage Solutions Pallet Rack ASRS Racking System

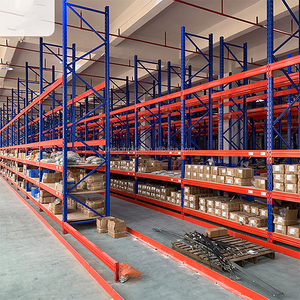

Industrial Logistics Warehouse Storage Rack Heavy Duty Steel Pallet System

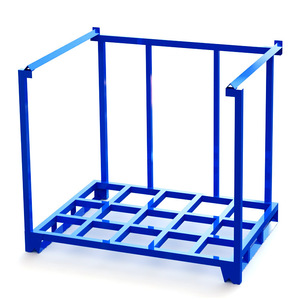

CASE CARTER OEM Cargo Storage Equipment Nestainer

CASE CARTER OEM Cargo Storage Equipment Stackable Pallet Tainer Metal Stacking Stillage Nestainer

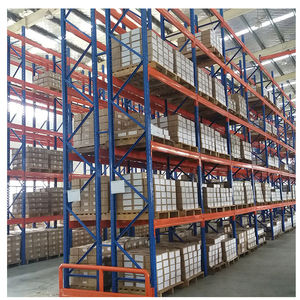

Heavy Duty Rack Storage Industrial Selective Assembly Pallet Use Rack Warehouse Storage Pallet Rack

CE Certified Industrial Warehouse Stacking Shelves Pallet Rack Storage System for Logistic Center

CASE CARTER MX-10 Foldable Storage Pallets

CASE CARTER MX-10 Heavy Duty Foldable Powder Coated Q235 Steel Stackable 4 High Storage Pallets For Fabric Rolls

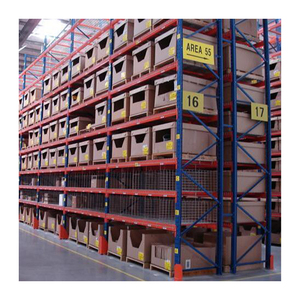

Heavy Duty Rack Compatible Steel Automated Storage Retrieval System 2000kg Pallet Capacity for Unmanned Warehouse Operations

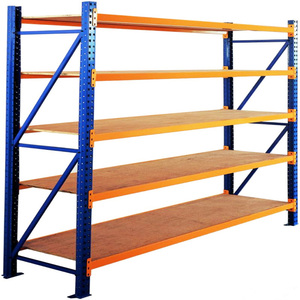

HUAWU 5 Ton Heavy Duty Selective Pallet Rack Steel Q235 Industrial Warehouse Storage Racking System PR-05

Industry Whitepaper & Technical Guide

Engineering Principles of CE Certified Pallet Storage Systems

In modern global supply chains, industrial warehouse racking systems are no longer treated as simple static steel shelving; they are dynamic structural steel load-bearing matrix solutions that must comply with strict mechanical load standards, seismic dampening regulations, and European Norms (EN). As an established CE certified logistics pallet storage system supplier and exporter operating from a 40,000 m² manufacturing plant since 2006, our enterprise adheres to rigorous structural calculations according to FEM 10.2.02 and EN 15512 design standards.

Key Information Gain: Structural Deflection and Yield Limits
Standard heavy-duty selective pallet racks engineered under EN 15512 mandate a maximum beam deflection limit of L/200 (where L is the span length of the beam). Under maximum allowable load conditions (e.g., 4,500 kg per beam pair), steel stress must remain below 70% of the yield strength ($f_y = 235 \text{ N/mm}^2$ for Q235B steel or $355 \text{ N/mm}^2$ for high-tensile Q355B steel), guaranteeing a structural safety margin coefficient of 1.5.

High-Yield Steel Profiles

Cold-formed structural steel upright columns feature continuous multi-bend profiling, optimizing structural inertia and resistance against torsional buckling under multi-ton pallet loads.

CE & EN 15512 Compliance

Every pallet rack system undergoes static and dynamic load validation, beam-to-column connector testing, and full structural compliance review before export clearance.

Automated Roll-Forming

State-of-the-art fully automated CNC roll-forming and robotic laser welding lines ensure precision pitch alignment, zero-gap pin engagement, and long-term durability.

2006

Founded Year

40,000m²

Production Base

85+

Export Countries

10-Year

Structural Warranty

Structural Architecture & Selection Matrix

Choosing the optimal warehouse pallet storage architecture requires evaluating key operational parameters: Stock Keeping Unit (SKU) diversity, inventory turnover method (FIFO vs. LIFO), vertical building height utilization, and forklift aisle clearances.

Storage System Category	Load Capacity (per level / lane)	Access Selectivity	Stock Rotation Method	Optimal Logistics Application
Selective Pallet Racking	1,500 kg – 4,500 kg	100% Direct Access	FIFO / LIFO	High-SKU distribution, manufacturing, 3PL fulfillment centers
Radio Shuttle System	1,000 kg – 2,000 kg per shuttle	Lane Selectivity	Flexible FIFO / LIFO	Cold storage facilities, high-density FMCG, food & beverage bulk handling
Automated ASRS Racking	Up to 2,000 kg / pallet	100% Automated Access	Dynamic FIFO	Unmanned high-bay smart warehouses, dark logistics hubs
Stackable Nestainer & Stillage	1,000 kg – 3,000 kg (Stack 4-High)	Bulk Block Access	LIFO Storage	Textile fabric rolls, irregular cargo, temporary seasonal overflow
Push Back Racking	1,500 kg – 3,500 kg (2–5 Deep)	Lane-level LIFO	LIFO	Medium-SKU high-density storage with standard counterbalanced forklifts

Global Procurement Trends in Warehouse Storage Systems

International supply chain procurement managers, structural engineers, and logistics warehouse operators are shifting their purchasing strategies based on four key industry mega-trends:

Transition Toward High-Bay Automation Readiness: Upright frame heights are expanding from standard 6–8 meter elevations up to 24+ meter high-bay installations designed to integrate seamlessly with Stacker Cranes, AGVs, and Automated Storage and Retrieval Systems (ASRS).
Stringent Seismic & Environmental Certifications: Global buyers increasingly demand independently audited CE, ISO 9001, ISO 14001, and TUV certifications. Seismic bracing engineering according to Eurocode 8 ensures operational safety in high-risk zones.
Electrostatic Epoxy Powder Finish Standards: Advanced thermosetting powder coatings (60–80 microns thickness) with pre-treatment zinc phosphating deliver high corrosion resistance, vital for humid tropical logistics centers and sub-zero cold chain storage (-30°C).
Modular OEM/ODM Customization for Specialized Cargo: Universal racking profiles are being superseded by engineered specialized racks—such as heavy-duty stackable Q235 steel fabric roll pallets, stillages, and post-pallets engineered to optimize container cubing during ocean transport.

Future Technological Trends in Industrial Pallet Storage

The industrial storage sector is undergoing a massive digital and material transformation. Over the next decade, strategic innovations will reshape how warehouse space is deployed:

4-Way Pallet Shuttle Mobility

Evolution from single-direction radio shuttles to intelligent 4-way omnidirectional shuttles that traverse across cross-aisles, dynamically optimizing fleet utilization and throughput.

IoT Structural Health Monitoring

Integration of strain gauges and optical displacement sensors directly within upright frames to alert safety officers real-time regarding forklift impacts or beam load exceedances.

Sustainable Green Steel & ESG

Utilization of eco-friendly ultra-high-strength steel grades allowing up to 15% reduction in raw material weight while maintaining identical yield strength, drastically lowering scope 3 carbon footprints.

Why Partner With Our Manufacturing Facility?

Backed by two decades of industrial engineering experience, our manufacturing hub delivers uncompromising quality, direct-factory pricing, and complete technical transparency for international importers, distributors, and project contractors.

20+ Years Manufacturing Excellence: Operating continuous automatic roll-forming, punching, welding, and powder coating lines in Nanjing, Jiangsu, China since 2006.
Multi-National Certification Standards: Comprehensive product safety compliance validated by CE, ISO 9001 (Quality Control), ISO 14001 (Environmental Safety), and TUV inspection standard certificates.
Engineering CAD/BIM Layout Design: Our in-house structural engineering team provides custom CAD warehouse floor plan layouts, load deflection calculations, and bill of materials within 24 hours of data submission.
10-Year Comprehensive Structural Warranty: Complete confidence backed by documented load performance ratings and structural steel material test reports (MTR) supplied with every export shipment.
Turnkey Global Export Packaging: Specialized anti-collision wrapping, steel banding, and optimized container packing methods designed to prevent freight damage during multi-week ocean transit across 85+ countries.

Frequently Asked Technical Questions (FAQ)

Read answers to structural, compliance, and purchasing questions asked by global supply chain buyers and engineering leads prior to issuing POs.

Which international engineering standards do your racking systems fulfill?

Our heavy-duty selective pallet racks and automated racking structures are designed and manufactured strictly in accordance with European standard EN 15512 (Cold-formed structural steel racking systems), FEM 10.2.02, and carry official CE certification. In addition, our manufacturing facilities adhere to ISO 9001 and ISO 14001 quality and environmental management protocols. Complete certificate documentation is supplied with every technical proposal.

How do I determine the correct beam profile and upright frame specifications for my project?

Engineering the optimal upright profile (e.g., 80mm, 90mm, 100mm, or 120mm front width) and beam section (box beam vs. step beam vs. C-beam) depends on four critical factors: max unit load weight per pallet, pallet dimensions (depth x width x height), total top beam elevation, and floor slab point-load bearing capacity. Simply send us your building layout or CAD drawing, and our structural engineers will return a complete safety calculation report and layout design free of charge.

Do you provide custom OEM/ODM racking solutions and custom branding for distributors?

Yes. We regularly supply OEM and ODM structural pallet storage components, custom-colored powder coating (RAL color spectrum matching), custom upright punching patterns, private-label brand badging, and bespoke packaging for international distributors, system integrators, and equipment dealers.

What is the difference between Q235B and Q355B structural steel in pallet racking?

Q235B steel offers a yield strength of $f_y = 235 \text{ N/mm}^2$ and tensile strength up to $470 \text{ N/mm}^2$, making it ideal for standard industrial selective racking applications up to 2,500 kg per beam level. Q355B is a high-tensile alloy steel ($f_y = 355 \text{ N/mm}^2$) used in ultra-heavy duty racking levels (4,000 kg – 5,000 kg), tall high-bay structures above 12 meters, or seismic-prone warehouse locations to maintain thin profiles without sacrificing structural stability.

How does your factory ensure surface protection and rust resistance for ocean shipment?

All steel components undergo a automated 5-stage pre-treatment process: alkaline degreasing, water rinse, acid pickling/derusting, surface conditioning, and zinc phosphate conversion. Components are subsequently electrostatically powder coated with high-durability epoxy-polyester resin (60–80 μm thickness) and cured in a 200°C thermal oven, passing salt spray corrosion tests for extreme durability during ocean transit and humid warehouse environments.

Accelerate Your Warehouse Capacity & Storage Density Today

Submit your warehouse floor plan, structural height constraints, and pallet specification requirements. Our senior racking engineers will formulate a CE-compliant, high-density layout and direct factory price quote within 24 business hours.
