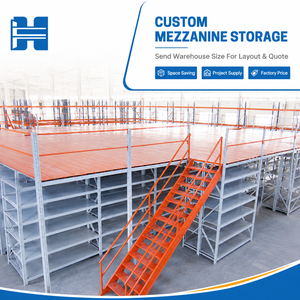

Customized Mezzanine Floor Racking Heavy-Duty Warehouse Storage Racks Shelving Units Supported Steel Platform Attic Rack

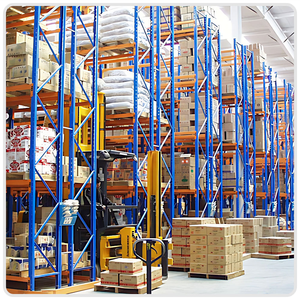

Customized Industrial Storage Racking System Selective Pallet Rack with Load Beams And Safety Clips For Warehouse Safety

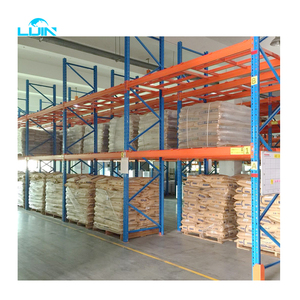

1 Ton Warehouse Storage Adjustable Pallet Racking Shelf Unit Forklift Assemble Manufacturer Steel Rack

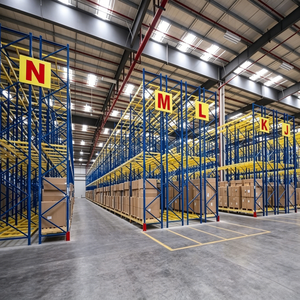

Multi Span Combined Rack Body Expandable Storage Capacity Unpalletized Auxiliary Goods Double Deep Pallet Racking
Reach Truck Aisle Steel Warehouse Building Narrow Racking High Capacity Galvanized Steel Frame System
Innovative Auto Shuttle Racking System for Intelligent Cold Storage Steel Pallet Racks Automatic Shuttle Shelving
Multi Tier Steel Grating Floor Industrial Mezzanine Platform H Steel Mezzanine Rack System Warehouse Mezzanine Floor System
Engineering White Paper

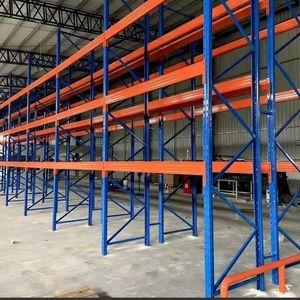

Drive-Through vs. Drive-In Racking: Structural Mechanics & Operational Engineering
In modern high-density warehouse logistics, optimizing cubic storage efficiency while maintaining structural integrity under dynamic forklift loads is a primary engineering objective. Drive-Through pallet racking systems represent a distinct evolutionary step beyond traditional selective pallet racking, delivering up to 85% footprint utilization by eliminating cross-aisles.
Core Structural Distinction: FIFO vs. LIFO Logistics
Unlike standard Drive-In racking systems—which operate on a single-entry Last-In, First-Out (LIFO) access pattern—a Drive-Through racking system features separate entry and exit access points. Forklifts can enter from the rear entry aisle to load pallets and extract them from the front exit aisle, facilitating true First-In, First-Out (FIFO) inventory rotation. This mechanics makes drive-through architecture critical for date-sensitive SKUs, cold chain logistics, and high-turnover fast-moving consumer goods (FMCG).
Structural Architecture & Load Distribution Mechanics
Because drive-through racking eliminates conventional horizontal load-bearing beams across the forklift lanes, structural stability relies entirely on continuous cantilevered pallet support rails, heavy-duty top tie bracing, and rear/side vertical frames. At PrimeBay Heavy Duty Racking Co., Ltd., our engineering team utilizes Finite Element Method (FEM) simulation software to analyze structural deflection and dynamic impact forces imposed by reach trucks entering the storage bays.
Cantilever Rail Profiles
Cold-rolled high-tensile steel rails (Q355B grade) with integrated side-guides prevent pallet misalignment and distribute heavy point loads (up to 1,500 kg per pallet) evenly to upright frames.
Top & Portal Bracing
Horizontal and diagonal truss bracing overhead forms a rigid rigidized box structure, controlling sway and absorbing lateral forces created during high-bay elevation maneuvers.
Floor-Anchored Guide Rails
Heavy-section structural steel ground rails guide forklift tires precisely along the inner lane, preventing collision damage to upright columns and accelerating driver throughput cycles.
